Step1: Product
CIT Relay and Switch CH2NGSGNS

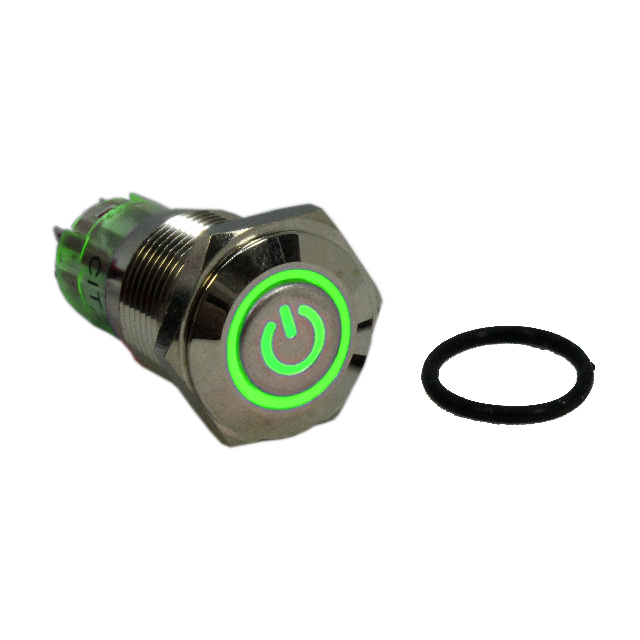

Image shown is a representation only
Manufacturer
Manufacturer No
CH2NGSGNS
Packaging
Tray
Description
SWITCH PB DPDT 1A 125V
Detailed Description
Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
Mfr
CIT Relay and Switch
Type
Anti-Vandal, Illuminated
Series
CH
Circuit
DPDT
Features
Stainless Steel
Packaging
Tray
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Front
Electrical Life
30,000 Cycles
Switch Function
On-Mom
Actuator Marking
No Marking
Termination Style
Solder Lug
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
CH2NGS
Voltage Rating - AC
125 V
Voltage Rating - DC
24 V
Color - Actuator/Cap
Silver
Current Rating (Amps)
1A (AC/DC)
Operating Temperature
-25°C ~ 70°C
Panel Cutout Dimensions
Circular - 16.00mm Dia
Illumination Type, Color
LED, Green
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Type | Anti-Vandal, Illuminated |
| Series | CH |
| Circuit | DPDT |
| Features | Stainless Steel |
| Packaging | Tray |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 30,000 Cycles |
| Switch Function | On-Mom |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | CH2NGS |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 1A (AC/DC) |
| Operating Temperature | -25°C ~ 70°C |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | LED, Green |
