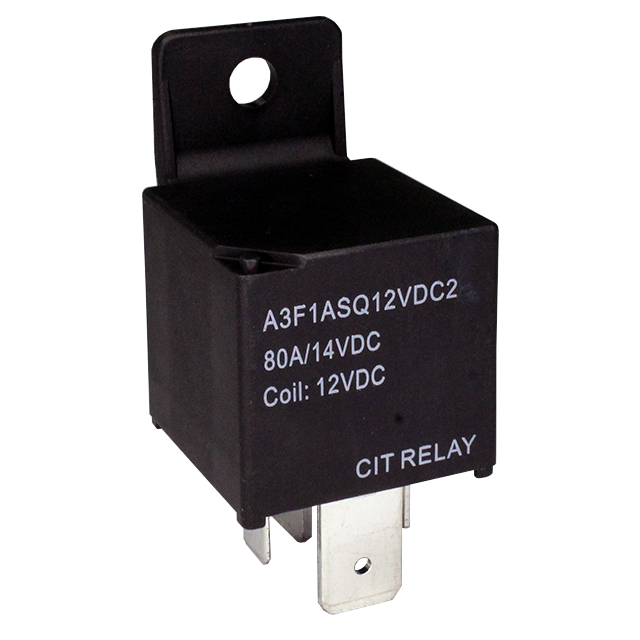

CIT Relay and Switch A3F1ASQ12VDC2
Image shown is a representation only
Manufacturer
Manufacturer No
A3F1ASQ12VDC2
Packaging
Tray
Description
RELAY AUTOMOTIVE SPST 80A 12V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
DataSheet
Series
A3
Features
Sealed - Fully
Coil Type
Non Latching
Packaging
Tray
Coil Power
1.8W
Part Status
Active
Coil Current
150 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
CIT Relay and Switch
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Chassis Mount
Coil Resistance
80 Ohms
Contact Material
Silver Tin Oxide Indium Oxide (AgSnOInO)
Switching Voltage
75VDC - Max
Termination Style
Quick Connect - Multiple Sizes
Base Product Number
A3F1ASQ
Must Operate Voltage
8.4 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
80 A
| Attribute | Value |
|---|---|
| Series | A3 |
| Features | Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Tray |
| Coil Power | 1.8W |
| Part Status | Active |
| Coil Current | 150 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | CIT Relay and Switch |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 80 Ohms |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Switching Voltage | 75VDC - Max |
| Termination Style | Quick Connect - Multiple Sizes |
| Base Product Number | A3F1ASQ |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 80 A |
