Step1: Product

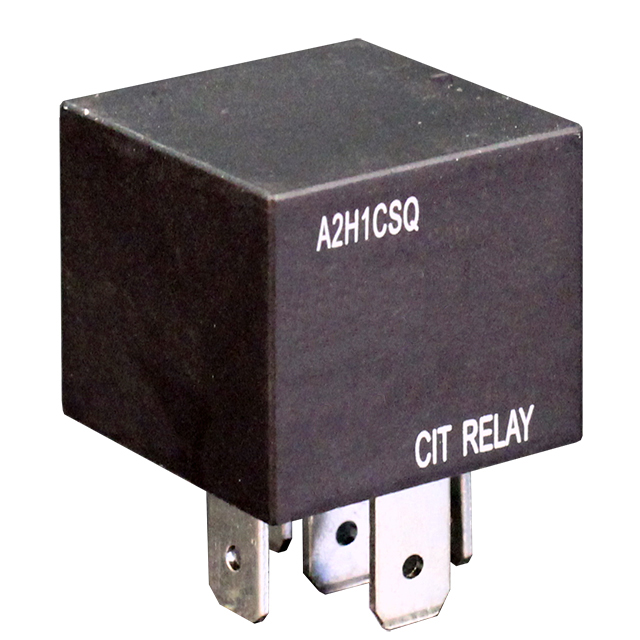

CIT Relay and Switch A2H1CSQ24VDC1.6R
Image shown is a representation only
Manufacturer
Manufacturer No
A2H1CSQ24VDC1.6R
Packaging
Tray
Description
RELAY AUTOMOTIVE SPDT 50A 24V
Detailed Description
Automotive Relay SPDT (1 Form C) 24VDC Coil Socketable
DataSheet
Series
A2H
Features
Resistor, Sealed - Fully
Coil Type
Non Latching
Packaging
Tray
Coil Power
1.6W
Part Status
Active
Coil Current
75 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Manufacturer
CIT Relay and Switch
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Socketable
Coil Resistance
320 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
75VDC - Max
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Base Product Number
A2H1CSQ
Must Operate Voltage
15.6 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
50 A
| Attribute | Value |
|---|---|
| Series | A2H |
| Features | Resistor, Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Tray |
| Coil Power | 1.6W |
| Part Status | Active |
| Coil Current | 75 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | CIT Relay and Switch |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Socketable |
| Coil Resistance | 320 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 75VDC - Max |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | A2H1CSQ |
| Must Operate Voltage | 15.6 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 50 A |
