Step1: Product
CIT Relay and Switch A21CSP24VDC1.6D

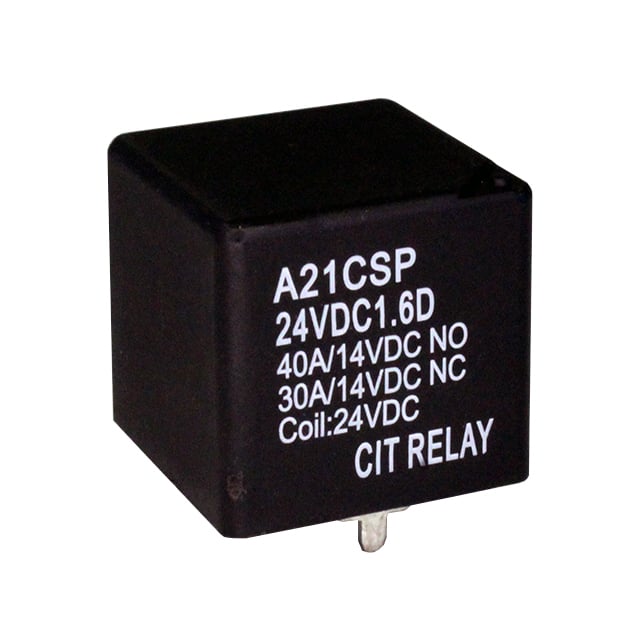

Image shown is a representation only
Manufacturer
Manufacturer No
A21CSP24VDC1.6D
Packaging
Tray
Description
RELAY AUTOMOTIVE SPDT 40A 24V
Detailed Description
Automotive Relay SPDT (1 Form C) 24VDC Coil Through Hole
DataSheet
Series
A2
Features
Diode, Sealed - Fully
Coil Type
Non Latching
Packaging
Tray
Coil Power
1.6W
Part Status
Active
Coil Current
66.7 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Manufacturer
CIT Relay and Switch
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Through Hole
Coil Resistance
360 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
75VDC - Max
Termination Style
PC Pin
Base Product Number
A21CSP
Must Operate Voltage
16.8 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Series | A2 |
| Features | Diode, Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Tray |
| Coil Power | 1.6W |
| Part Status | Active |
| Coil Current | 66.7 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | CIT Relay and Switch |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 75VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | A21CSP |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 40 A |
