Step1: Product

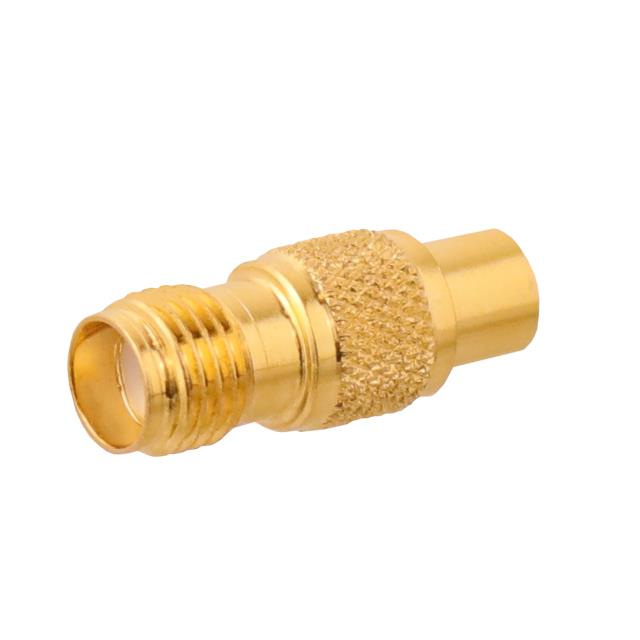

Cinch Connectivity Solutions CGM-1060-SF-MCF-09
Image shown is a representation only
Manufacturer
Manufacturer No
CGM-1060-SF-MCF-09
Packaging
Box
Description
COAX ADAPT SMA TO MCX
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To MCX Jack, Female Socket 50 Ohms
DataSheet
Mfr
Cinch Connectivity Solutions
Style
Straight
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Female
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMA to MCX
Fastening Type
Snap-On, Threaded
Insertion Loss
0.50dB
Conversion Type
Between Series
Frequency - Max
6 GHz
Base Product Number
CGM-1060
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
MCX Jack, Female Socket
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Female |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMA to MCX |
| Fastening Type | Snap-On, Threaded |
| Insertion Loss | 0.50dB |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Base Product Number | CGM-1060 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | MCX Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket |
