Step1: Product

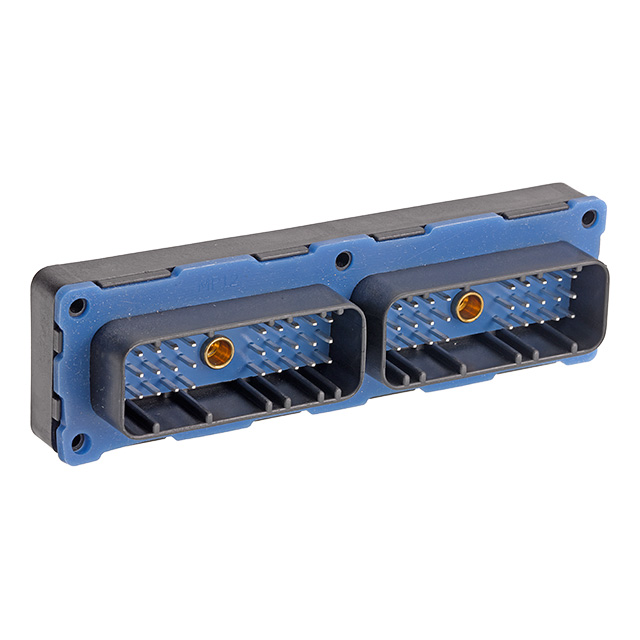

Cinch Connectivity Solutions 581-01-60-001
Image shown is a representation only
Manufacturer
Manufacturer No
581-01-60-001
Packaging
Bulk
Description
CONN HEADER R/A 60POS
Detailed Description
Connector Header Through Hole, Right Angle 60 position
DataSheet
Mfr
Cinch Connectivity Solutions
Style
Board to Cable/Wire
Series
SHS
Features
Ferrite Filter
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Threaded
Number of Rows
3
Contact Material
Brass
Insulation Color
Black
Ingress Protection
IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Base Product Number
581-01-60
Insulation Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions
60
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.166" (4.22mm)
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin-Lead
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions |
| Style | Board to Cable/Wire |
| Series | SHS |
| Features | Ferrite Filter |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Threaded |
| Number of Rows | 3 |
| Contact Material | Brass |
| Insulation Color | Black |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Base Product Number | 581-01-60 |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 60 |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.166" (4.22mm) |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin-Lead |
| Number of Positions Loaded | All |
