Step1: Product
Chemi-Con ESMH101VSN152MP35U

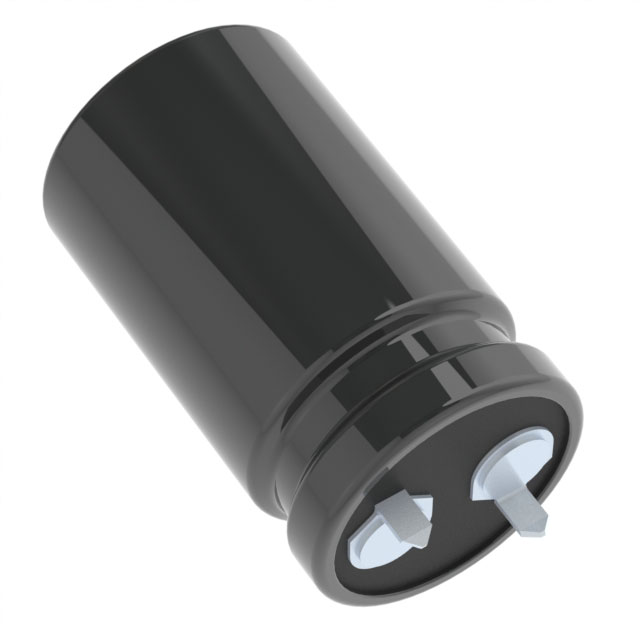

Image shown is a representation only
Manufacturer
Manufacturer No
ESMH101VSN152MP35U
Package
Radial, Can - Snap-In
Packaging
Bulk
Description
CAP ALUM 1500UF 20% 100V SNAP TH
Detailed Description
1500 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 166mOhm @ 120Hz 2000 Hrs @ 85°C
DataSheet
Mfr
Chemi-Con
Series
SMH
Packaging
Bulk
Tolerance
±20%
Capacitance
1500 µF
Part Status
Active
Lead Spacing
0.394" (10.00mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can - Snap-In
Voltage - Rated
100 V
Lifetime @ Temp.
2000 Hrs @ 85°C
Size / Dimension
0.866" Dia (22.00mm)
Height - Seated (Max)
1.457" (37.00mm)
Operating Temperature
-40°C ~ 85°C
Ripple Current @ Low Frequency
2.41 A @ 120 Hz
Ripple Current @ High Frequency
2.892 A @ 100 kHz
ESR (Equivalent Series Resistance)
166mOhm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Chemi-Con |
| Series | SMH |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1500 µF |
| Part Status | Active |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 100 V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Ripple Current @ Low Frequency | 2.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.892 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
