Step1: Product
Chemi-Con EKMH500VNN472MA25T

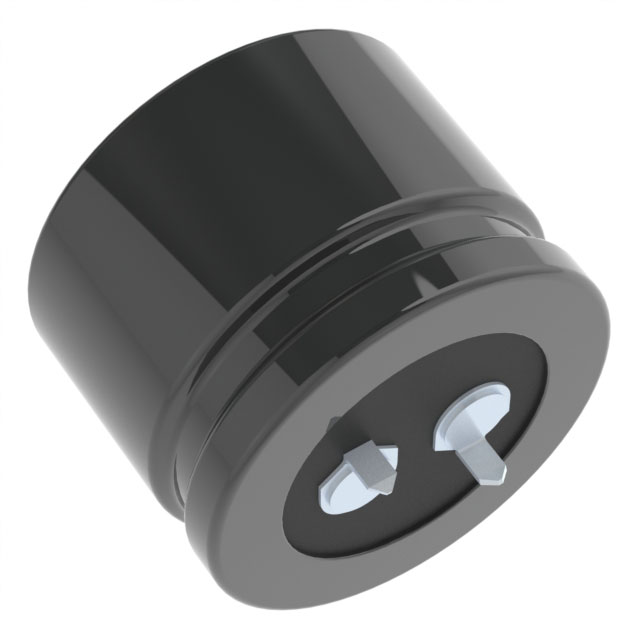

Image shown is a representation only
Manufacturer
Manufacturer No
EKMH500VNN472MA25T
Package
Radial, Can - Snap-In
Packaging
Bulk
Description
CAP ALUM 4700UF 20% 50V SNAP TH
Detailed Description
4700 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 71mOhm @ 120Hz 2000 Hrs @ 105°C
DataSheet
Mfr
Chemi-Con
Series
KMH
Packaging
Bulk
Tolerance
±20%
Capacitance
4700 µF
Part Status
Obsolete
Applications
General Purpose
Lead Spacing
0.394" (10.00mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can - Snap-In
Voltage - Rated
50 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
1.378" Dia (35.00mm)
Height - Seated (Max)
1.063" (27.00mm)
Operating Temperature
-40°C ~ 105°C
Ripple Current @ Low Frequency
2.48 A @ 120 Hz
Ripple Current @ High Frequency
2.6784 A @ 100 kHz
ESR (Equivalent Series Resistance)
71mOhm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Chemi-Con |
| Series | KMH |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 4700 µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 50 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Ripple Current @ Low Frequency | 2.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6784 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
