Step1: Product
Chemi-Con APXE100ARA560ME61G

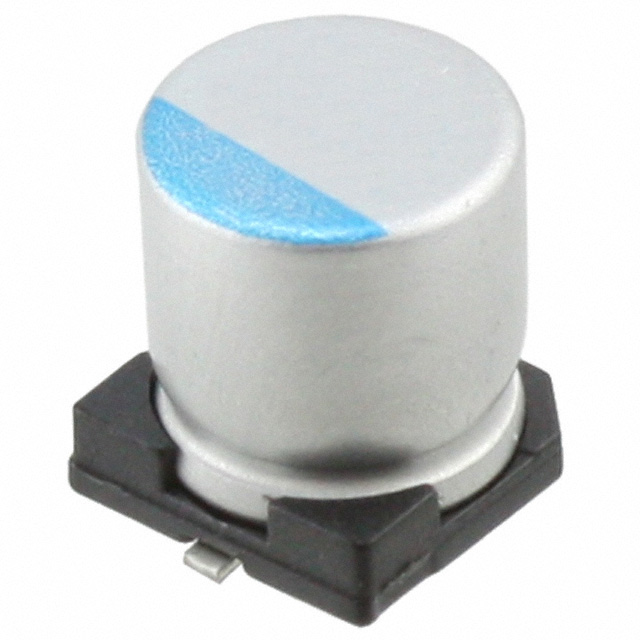

Image shown is a representation only
Manufacturer
Manufacturer No
APXE100ARA560ME61G
Quantity
3115
Availability
In Stock
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CAP ALUM POLY 56UF 20% 10V SMD
Detailed Description
56 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 2000 Hrs @ 105°C
DataSheet
Type
Polymer
Series
NPCAP™-PXE
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Tolerance
±20%
Capacitance
56 µF
Part Status
Active
Applications
General Purpose
Manufacturer
Chemi-Con
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
10 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.197" Dia (5.00mm)
Height - Seated (Max)
0.228" (5.80mm)
Operating Temperature
-55°C ~ 105°C
Surface Mount Land Size
0.209" L x 0.209" W (5.30mm x 5.30mm)
Ripple Current @ High Frequency
2.31 A @ 100 kHz
ESR (Equivalent Series Resistance)
28mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | NPCAP™-PXE |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 56 µF |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Chemi-Con |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 10 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 28mOhm |
