Step1: Product
Central Technologies CTMC1812SF-3R3J

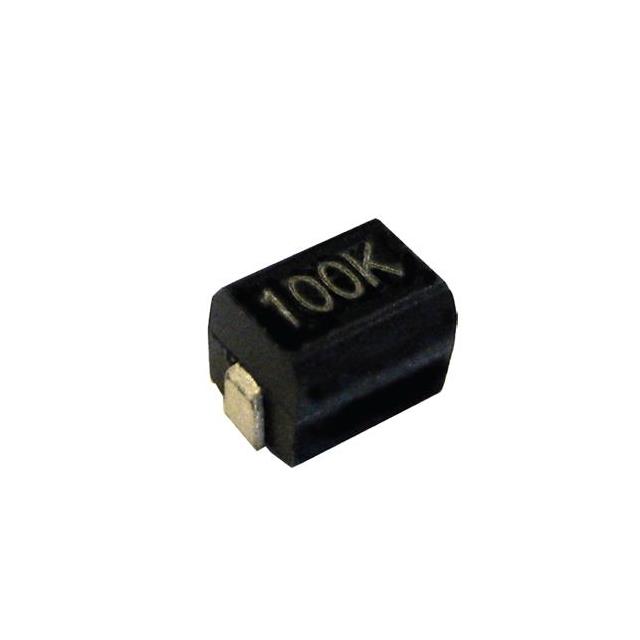

Image shown is a representation only
Manufacturer
Manufacturer No
CTMC1812SF-3R3J
Package
1812 (4532 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 3.3UH 355MA 800 MOHM
Detailed Description
3.3 µH Unshielded Drum Core, Wirewound Inductor 355 mA 800mOhm Max 1812 (4532 Metric)
DataSheet
Mfr
Central Technologies
Type
Drum Core, Wirewound
Series
CTMC1812SF
Q @ Freq
50 @ 7.96MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±5%
Inductance
3.3 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric)
Material - Core
Ferrite
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
DC Resistance (DCR)
800mOhm Max
Current Rating (Amps)
355 mA
Height - Seated (Max)
0.134" (3.40mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1812
Frequency - Self Resonant
110MHz
Inductance Frequency - Test
7.96 MHz
| Attribute | Value |
|---|---|
| Mfr | Central Technologies |
| Type | Drum Core, Wirewound |
| Series | CTMC1812SF |
| Q @ Freq | 50 @ 7.96MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 3.3 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| DC Resistance (DCR) | 800mOhm Max |
| Current Rating (Amps) | 355 mA |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1812 |
| Frequency - Self Resonant | 110MHz |
| Inductance Frequency - Test | 7.96 MHz |
