Step1: Product
Central Semiconductor Corp CTLM7110-M832D BK

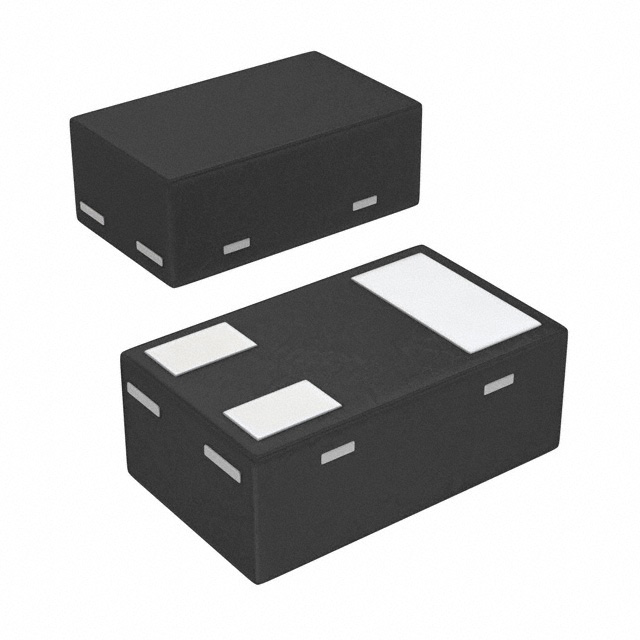

Image shown is a representation only
Manufacturer
Manufacturer No
CTLM7110-M832D BK
Package
8-TDFN Exposed Pad
Packaging
Bulk
Description
TRANSISTOR
Detailed Description
N-Channel 20 V 1A (Ta) 1.65W (Ta) Surface Mount TLM832D
Datasheet
Mfr
Central Semiconductor Corp
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
8V
Technology
MOSFET (Metal Oxide)
FET Feature
Schottky Diode (Isolated)
Mounting Type
Surface Mount
Package / Case
8-TDFN Exposed Pad
Vgs(th) (Max) @ Id
1.2V @ 1mA
Operating Temperature
-65°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
250mOhm @ 100mA, 1.5V
Power Dissipation (Max)
1.65W (Ta)
Supplier Device Package
TLM832D
Gate Charge (Qg) (Max) @ Vgs
2.4 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
220 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
1A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Central Semiconductor Corp |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | 8V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Schottky Diode (Isolated) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1.2V @ 1mA |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 100mA, 1.5V |
| Power Dissipation (Max) | 1.65W (Ta) |
| Supplier Device Package | TLM832D |
| Gate Charge (Qg) (Max) @ Vgs | 2.4 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 220 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
