Step1: Product
Celduc Inc. D31A3100

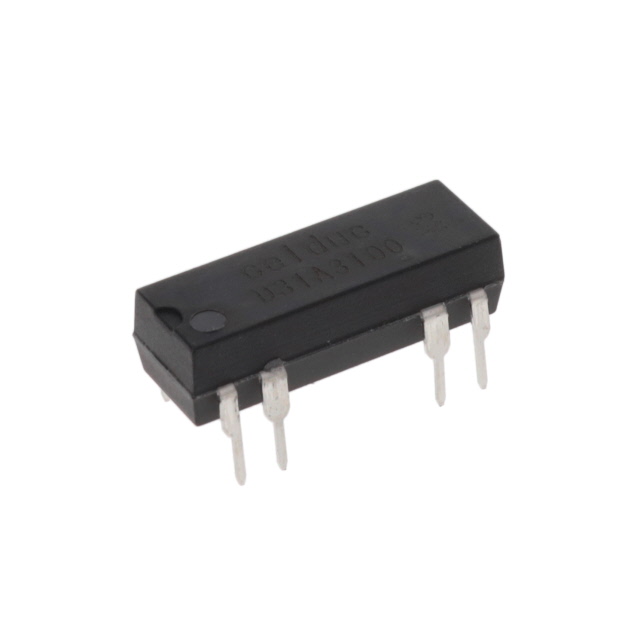

Image shown is a representation only
Manufacturer
Manufacturer No
D31A3100
Packaging
Tube
Description
REED RELAY 1A/5V
Detailed Description
Reed Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
DataSheet
Coil Type
Non Latching
Packaging
Tube
Part Status
Active
Coil Current
10 mA
Coil Voltage
5VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Celduc Inc.
Operate Time
1 ms
Release Time
50 µs
Mounting Type
Through Hole
Coil Resistance
500 Ohms
Contact Material
Rhodium (Rh)
Switching Voltage
100VDC - Max
Termination Style
PC Pin
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.8 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
500 mA
| Attribute | Value |
|---|---|
| Coil Type | Non Latching |
| Packaging | Tube |
| Part Status | Active |
| Coil Current | 10 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Celduc Inc. |
| Operate Time | 1 ms |
| Release Time | 50 µs |
| Mounting Type | Through Hole |
| Coil Resistance | 500 Ohms |
| Contact Material | Rhodium (Rh) |
| Switching Voltage | 100VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.8 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 500 mA |
