Step1: Product
CDA (Zhifengwei Technology) CHT-5R5L105R-TW

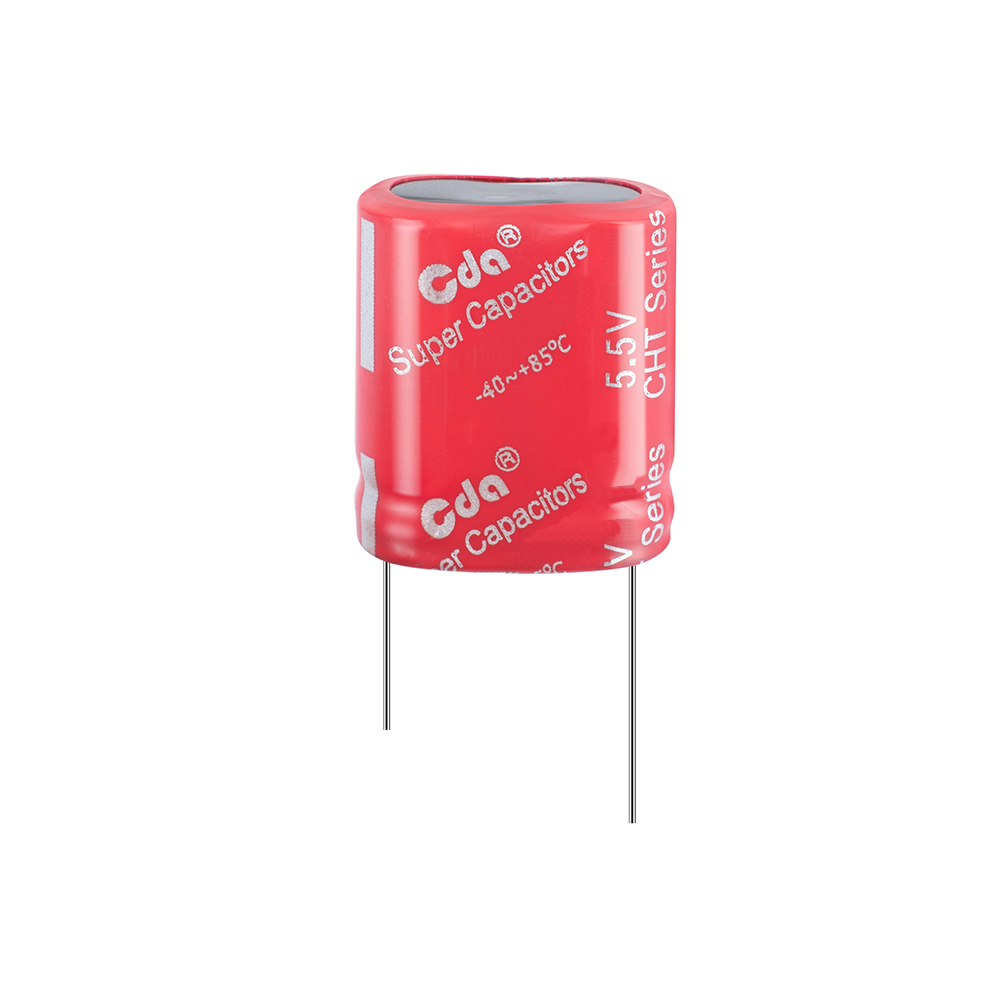

Image shown is a representation only
Manufacturer
Manufacturer No
CHT-5R5L105R-TW
Package
Radial, Can
Packaging
Bag
Description
5.5V 1F 16*8*18 T/DA EDLC
Detailed Description
1 F (EDLC) Supercapacitor 5.5 V Radial, Can 240mOhm @ 1kHz 1000 Hrs @ 85°C
DataSheet
Series
CHT
Packaging
Bag
Tolerance
-10%, +30%
Capacitance
1 F
Part Status
Active
Termination
PC Pins
Lead Spacing
0.453" (11.50mm)
Manufacturer
CDA (Zhifengwei Technology)
Mounting Type
Through Hole
Package / Case
Radial, Can
Voltage - Rated
5.5 V
Lifetime @ Temp.
1000 Hrs @ 85°C
Size / Dimension
0.630" L x 0.315" W (16.00mm x 8.00mm)
Height - Seated (Max)
0.768" (19.50mm)
Operating Temperature
-40°C ~ 85°C
ESR (Equivalent Series Resistance)
240mOhm @ 1kHz
| Attribute | Value |
|---|---|
| Series | CHT |
| Packaging | Bag |
| Tolerance | -10%, +30% |
| Capacitance | 1 F |
| Part Status | Active |
| Termination | PC Pins |
| Lead Spacing | 0.453" (11.50mm) |
| Manufacturer | CDA (Zhifengwei Technology) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 5.5 V |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Size / Dimension | 0.630" L x 0.315" W (16.00mm x 8.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| ESR (Equivalent Series Resistance) | 240mOhm @ 1kHz |
