Step1: Product
C&K ZMW00AP00JCAA

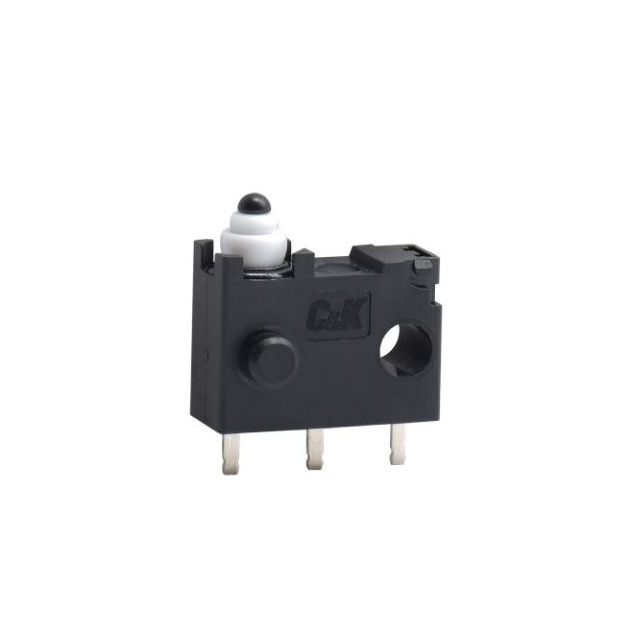

Image shown is a representation only
Manufacturer
Manufacturer No
ZMW00AP00JCAA
Packaging
Tray
Description
SWITCH SNAP ACTION SPDT 0.1A 30V
Detailed Description
Switch SPDT Chassis Mount
Datasheet
Series
ZMW
Circuit
SPDT
Packaging
Tray
Pretravel
0.030" (0.8mm)
Overtravel
0.087" (2.2mm)
Manufacturer
C&K
Actuator Type
Round (Pin Plunger)
Mounting Type
Chassis Mount
Electrical Life
300,000 Cycles
Mechanical Life
500,000 Cycles
Operating Force
150gf
Switch Function
On-Mom
Termination Style
Wire Leads
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
ZMW00AP00
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | ZMW |
| Circuit | SPDT |
| Packaging | Tray |
| Pretravel | 0.030" (0.8mm) |
| Overtravel | 0.087" (2.2mm) |
| Manufacturer | C&K |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Electrical Life | 300,000 Cycles |
| Mechanical Life | 500,000 Cycles |
| Operating Force | 150gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | ZMW00AP00 |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
