Step1: Product
C&K SDA02H0B

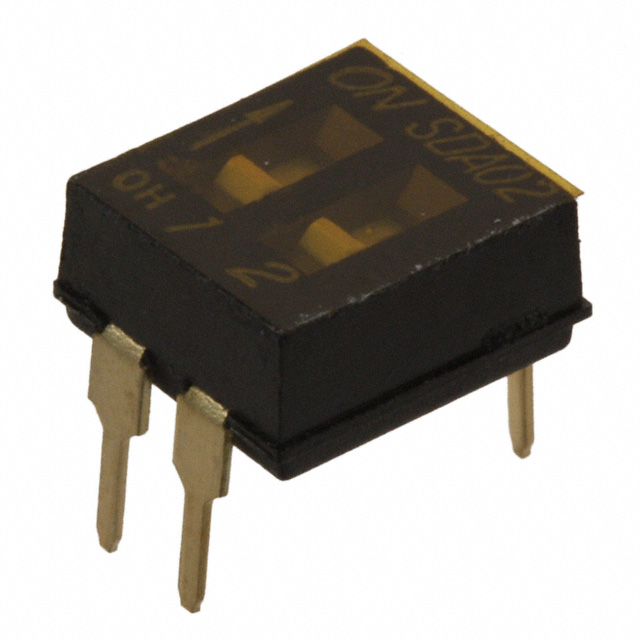

Image shown is a representation only
Manufacturer
Manufacturer No
SDA02H0B
Packaging
Tube
Description
SWITCH DIP SLIDE SPST 25MA 24V
Detailed Description
Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.278" (7.06mm)
Series
SDA
Circuit
SPST
Features
Tape Seal
Washable
Yes
Packaging
Tube
Part Status
Active
Manufacturer
C&K
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
1,000 Cycles
Mechanical Life
1,000 Cycles
Contact Material
Beryllium Copper
Termination Style
PC Pin
Height Above Board
0.183" (4.65mm)
Base Product Number
SDA02H
Number of Positions
2
Current Rating (Amps)
25mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.278" (7.06mm) |
| Series | SDA |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | C&K |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | 1,000 Cycles |
| Contact Material | Beryllium Copper |
| Termination Style | PC Pin |
| Height Above Board | 0.183" (4.65mm) |
| Base Product Number | SDA02H |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
