Step1: Product

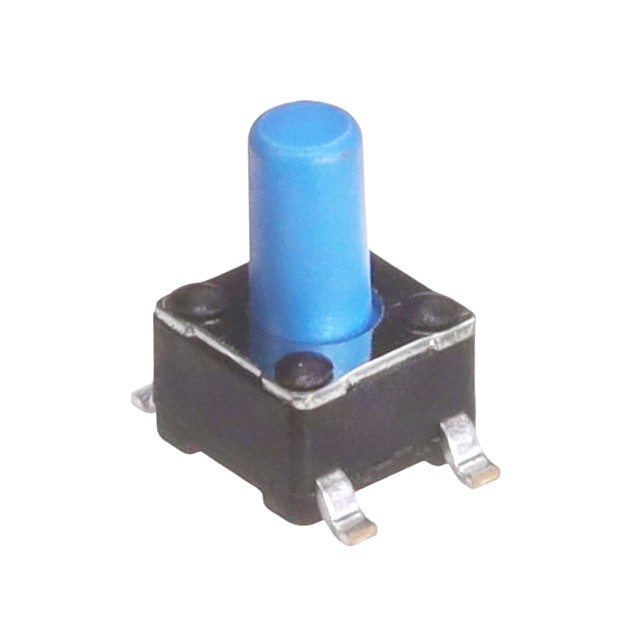

C&K PTS647SK70SMTR2N LFS
Image shown is a representation only
Manufacturer
Manufacturer No
PTS647SK70SMTR2N LFS
Quantity
7455
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
C&K
Series
PTS647
Circuit
SPST-NO
Outline
4.50mm x 4.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.25mm
Mechanical Life
200,000 Cycles
Operating Force
250gf
Switch Function
Off-Mom
Termination Style
Gull Wing
Ingress Protection
IP40
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
7.00mm
| Attribute | Value |
|---|---|
| Mfr | C&K |
| Series | PTS647 |
| Circuit | SPST-NO |
| Outline | 4.50mm x 4.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.25mm |
| Mechanical Life | 200,000 Cycles |
| Operating Force | 250gf |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Ingress Protection | IP40 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 7.00mm |
