Step1: Product
C&K PT103SSQ

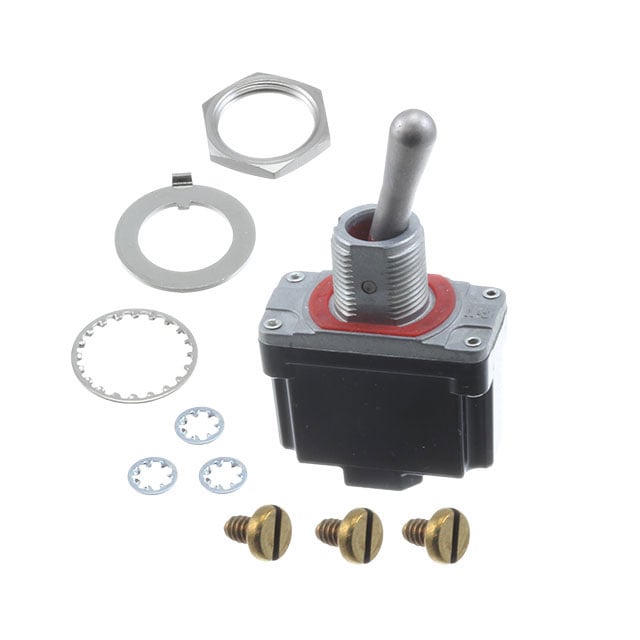

Image shown is a representation only
Manufacturer
Manufacturer No
PT103SSQ
Quantity
32
Availability
In Stock
Packaging
Tray
Description
SWITCH TOGGLE SPDT 15A 277V
Detailed Description
Toggle Switch SPDT Panel Mount
Datasheet
Mfr
C&K
Series
PT
Circuit
SPDT
Features
Sealed
Packaging
Tray
Illumination
Non-Illuminated
Actuator Type
Standard Round
Mounting Type
Panel Mount
Bushing Thread
15/32-32
Actuator Length
17.20mm
Electrical Life
10,000 Cycles
Switch Function
On-Off-On
Actuator Material
Stainless Steel
Termination Style
Screw Terminal
Ingress Protection
IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Base Product Number
PT103S
Voltage Rating - AC
277 V
Voltage Rating - DC
28 V
Current Rating (Amps)
15A (AC/DC)
Operating Temperature
-40°C ~ 85°C
Panel Cutout Dimensions
Circular - 12.40mm Dia
| Attribute | Value |
|---|---|
| Mfr | C&K |
| Series | PT |
| Circuit | SPDT |
| Features | Sealed |
| Packaging | Tray |
| Illumination | Non-Illuminated |
| Actuator Type | Standard Round |
| Mounting Type | Panel Mount |
| Bushing Thread | 15/32-32 |
| Actuator Length | 17.20mm |
| Electrical Life | 10,000 Cycles |
| Switch Function | On-Off-On |
| Actuator Material | Stainless Steel |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Base Product Number | PT103S |
| Voltage Rating - AC | 277 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 15A (AC/DC) |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 12.40mm Dia |
