Step1: Product
C&K PLP160001

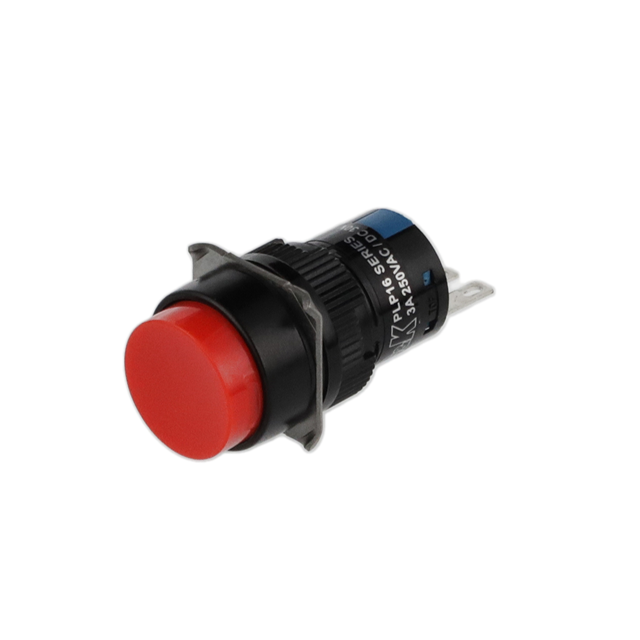

Image shown is a representation only
Manufacturer
Manufacturer No
PLP160001
Packaging
Tray
Description
LOCK, ROUND, IP65, NON-ILLUMINAT
Detailed Description
Pushbutton Switch SPDT Standard Panel Mount, Front
DataSheet
Mfr
C&K
Type
Standard
Series
PLP16
Circuit
SPDT
Packaging
Tray
Part Status
Obsolete
Actuator Type
Round, Button
Mounting Type
Panel Mount, Front
Electrical Life
50,000 Cycles
Mechanical Life
100,000 Cycles
Switch Function
On-On
Actuator Marking
No Marking
Termination Style
Solder Lug
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
PLP16
Voltage Rating - AC
250 V
Voltage Rating - DC
30 V
Color - Actuator/Cap
Red
Current Rating (Amps)
3A (AC), 1A (DC)
Operating Temperature
-25°C ~ 55°C
Panel Cutout Dimensions
Circular - 16.20mm Dia
| Attribute | Value |
|---|---|
| Mfr | C&K |
| Type | Standard |
| Series | PLP16 |
| Circuit | SPDT |
| Packaging | Tray |
| Part Status | Obsolete |
| Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Switch Function | On-On |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | PLP16 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3A (AC), 1A (DC) |
| Operating Temperature | -25°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
