Step1: Product

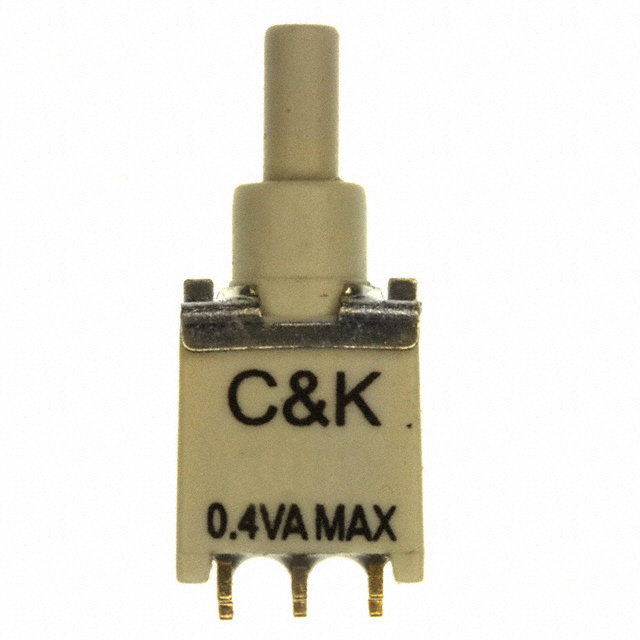

C&K EP12SD1SA1BE
Image shown is a representation only
Manufacturer
Manufacturer No
EP12SD1SA1BE
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH PUSH SPDT 0.4VA 20V
Detailed Description
Pushbutton Switch SPDT Standard Surface Mount, Right Angle
DataSheet
Mfr
C&K
Type
Standard
Series
EP
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Actuator Type
Round, Plunger
Mounting Type
Surface Mount, Right Angle
Electrical Life
30,000 Cycles
Switch Function
On-Mom
Actuator Marking
No Marking
Termination Style
Gull Wing
Ingress Protection
IP57 - Dust Protected, Waterproof
Base Product Number
EP12SD1
Voltage Rating - AC
20 V
Voltage Rating - DC
20 V
Color - Actuator/Cap
White
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | C&K |
| Type | Standard |
| Series | EP |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Actuator Type | Round, Plunger |
| Mounting Type | Surface Mount, Right Angle |
| Electrical Life | 30,000 Cycles |
| Switch Function | On-Mom |
| Actuator Marking | No Marking |
| Termination Style | Gull Wing |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Base Product Number | EP12SD1 |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
