Step1: Product

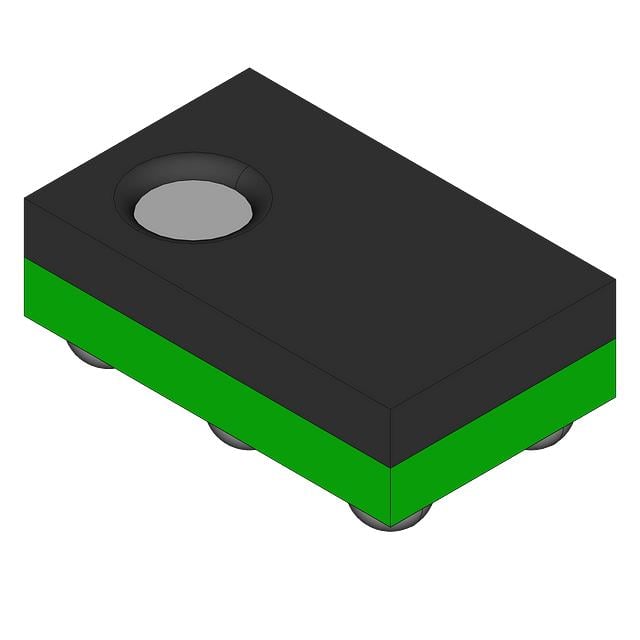

California Micro Devices CM1244-04CP
Image shown is a representation only
Manufacturer
Manufacturer No
CM1244-04CP
Package
5-WFBGA, WLCSP
Packaging
Bulk
Description
TVS DIODE 15VC 5WLCSP
Detailed Description
15V (Typ) Clamp Ipp Tvs Diode Surface Mount 5-WLCSP (0.76x1.05)
DataSheet
Mfr
California Micro Devices
Type
Zener
Packaging
Bulk
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
5-WFBGA, WLCSP
Base Product Number
CM1244
Operating Temperature
-40°C ~ 85°C (TA)
Power Line Protection
No
Supplier Device Package
5-WLCSP (0.76x1.05)
Unidirectional Channels
4
Voltage - Breakdown (Min)
5.5V
Voltage - Clamping (Max) @ Ipp
15V (Typ)
| Attribute | Value |
|---|---|
| Mfr | California Micro Devices |
| Type | Zener |
| Packaging | Bulk |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, WLCSP |
| Base Product Number | CM1244 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Power Line Protection | No |
| Supplier Device Package | 5-WLCSP (0.76x1.05) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 15V (Typ) |
