Step1: Product

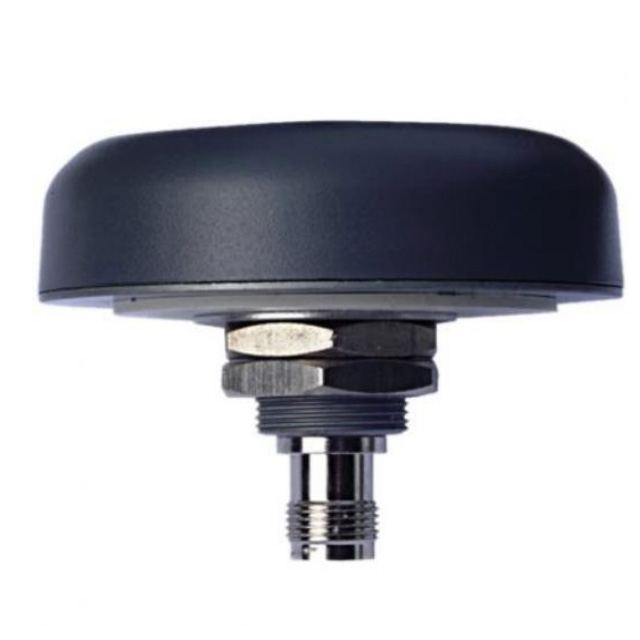

Calian 33-3990XF-00-10-5000
Image shown is a representation only
Manufacturer
Manufacturer No
33-3990XF-00-10-5000
Packaging
Bag
Description
EXTENDED-FILTERED FULL-BAND PLUS
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS Dome SMA Male Through Hole
DataSheet
Gain
37dBi, 37dBi
VSWR
2
Features
Cable - 5m, LNA, Filter
Packaging
Bag
Part Status
Active
Termination
SMA Male
Antenna Type
Dome
Applications
Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS
Height (Max)
1.878" (47.70mm)
Manufacturer
Calian
Mounting Type
Through Hole
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.606GHz
Number of Bands
2
Ingress Protection
IP69K
RF Family/Standard
Cellular, Navigation
Frequency (Center/Band)
1.232GHz, 1.582GHz
| Attribute | Value |
|---|---|
| Gain | 37dBi, 37dBi |
| VSWR | 2 |
| Features | Cable - 5m, LNA, Filter |
| Packaging | Bag |
| Part Status | Active |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS |
| Height (Max) | 1.878" (47.70mm) |
| Manufacturer | Calian |
| Mounting Type | Through Hole |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.606GHz |
| Number of Bands | 2 |
| Ingress Protection | IP69K |
| RF Family/Standard | Cellular, Navigation |
| Frequency (Center/Band) | 1.232GHz, 1.582GHz |
