Step1: Product

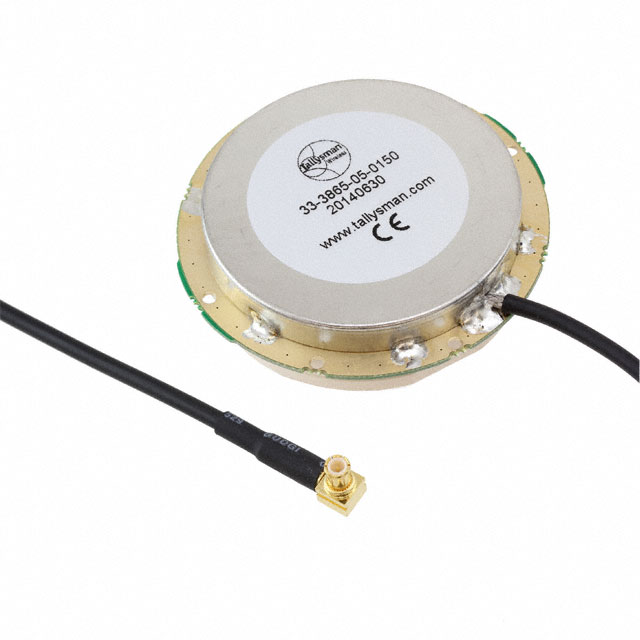

Calian 33-3865-05-0150
Image shown is a representation only
Manufacturer
Manufacturer No
33-3865-05-0150
Packaging
Bulk
Description
RF ANT 1.2GHZ/1.575GHZ CER PATCH
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GPS Ceramic Patch MCX Male Chassis Mount
DataSheet
Gain
3dBic, 4.5dBic
VSWR
1.5
Series
Accutenna®
Features
LNA
Packaging
Bulk
Part Status
Active
Termination
MCX Male
Antenna Type
Ceramic Patch
Applications
Beidou, Galileo, GLONASS, GPS
Height (Max)
0.634" (16.10mm)
Manufacturer
Calian
Mounting Type
Chassis Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.228GHz ~ 1.248GHz, 1.575GHz ~ 1.602GHz
Number of Bands
4
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.2GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 3dBic, 4.5dBic |
| VSWR | 1.5 |
| Series | Accutenna® |
| Features | LNA |
| Packaging | Bulk |
| Part Status | Active |
| Termination | MCX Male |
| Antenna Type | Ceramic Patch |
| Applications | Beidou, Galileo, GLONASS, GPS |
| Height (Max) | 0.634" (16.10mm) |
| Manufacturer | Calian |
| Mounting Type | Chassis Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.228GHz ~ 1.248GHz, 1.575GHz ~ 1.602GHz |
| Number of Bands | 4 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.2GHz, 1.575GHz, 1.602GHz |
