Step1: Product

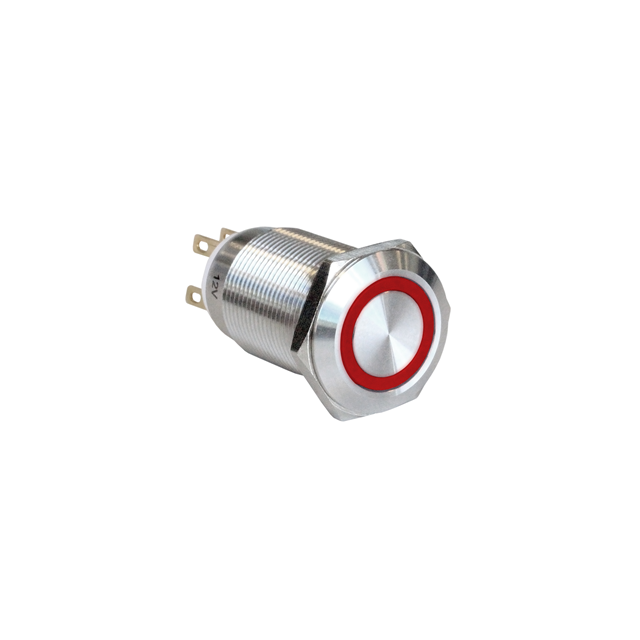

Bulgin MPI005R28LSRD12
Image shown is a representation only
Manufacturer
Manufacturer No
MPI005R28LSRD12
Packaging
Bulk
Description
SWITCH PB SPCO ILLUM RED SS
Detailed Description
Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
DataSheet
Mfr
Bulgin
Type
Anti-Vandal, Illuminated
Series
MPI
Circuit
DPST-NO/NC
Packaging
Bulk
Part Status
Active
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Front
Electrical Life
50,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Actuator Marking
No Marking
Termination Style
Quick Connect - 0.110" (2.8mm)
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
MPI005
Voltage Rating - AC
125 V
Voltage Rating - DC
24 V
Color - Actuator/Cap
Silver
Current Rating (Amps)
5A (AC/DC)
Operating Temperature
-25°C ~ 55°C
Panel Cutout Dimensions
Circular - 19.20mm Dia
Illumination Type, Color
LED, Red
Illumination Voltage (Nominal)
12 VAC
| Attribute | Value |
|---|---|
| Mfr | Bulgin |
| Type | Anti-Vandal, Illuminated |
| Series | MPI |
| Circuit | DPST-NO/NC |
| Packaging | Bulk |
| Part Status | Active |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Actuator Marking | No Marking |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | MPI005 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 5A (AC/DC) |
| Operating Temperature | -25°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 12 VAC |
