Step1: Product

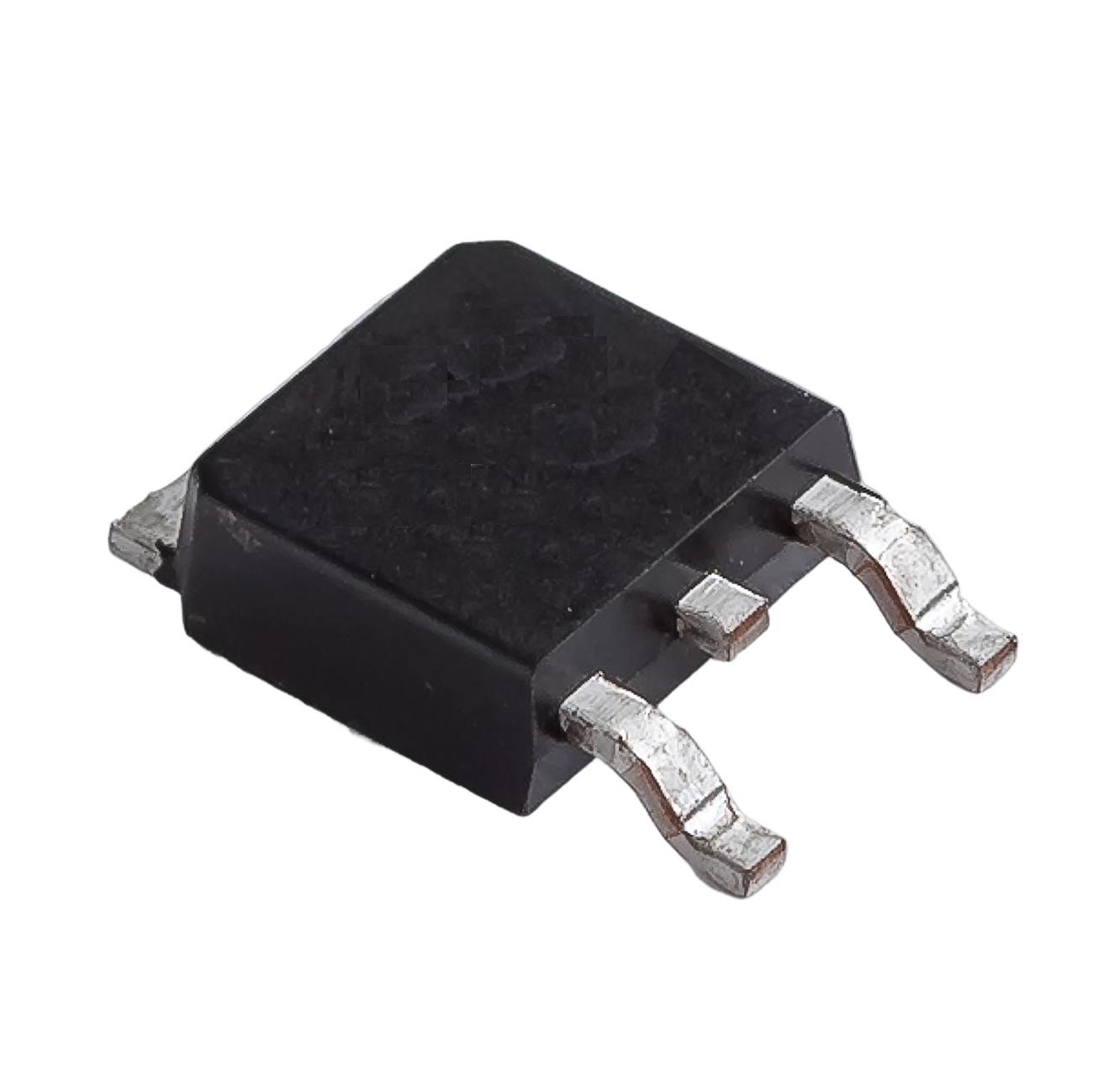

Bruckewell CBR08P65D
Image shown is a representation only
Manufacturer
Manufacturer No
CBR08P65D
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Cut Tape (CT); ; Tape & Box (TB)
Description
DIODE SIL CARB 650V 29A TO2522L
Detailed Description
Diode 650 V 29A Surface Mount TO-252-2L
DataSheet
Mfr
Bruckewell
Grade
Automotive
Speed
Zero Recovery Time > 500mA (Io)
Packaging
Cut Tape (CT); Digi-Reel®; Tape & Box (TB)
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Base Product Number
CBR08
Supplier Device Package
TO-252-2L
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
25 µA @ 650 V
Voltage - DC Reverse (Vr) (Max)
650 V
Current - Average Rectified (Io)
29A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.7 V @ 8 A
| Attribute | Value |
|---|---|
| Mfr | Bruckewell |
| Grade | Automotive |
| Speed | Zero Recovery Time > 500mA (Io) |
| Packaging | Cut Tape (CT); Digi-Reel®; Tape & Box (TB) |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | CBR08 |
| Supplier Device Package | TO-252-2L |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 29A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 8 A |
