Step1: Product
Broadcom Limited HDSP-A103

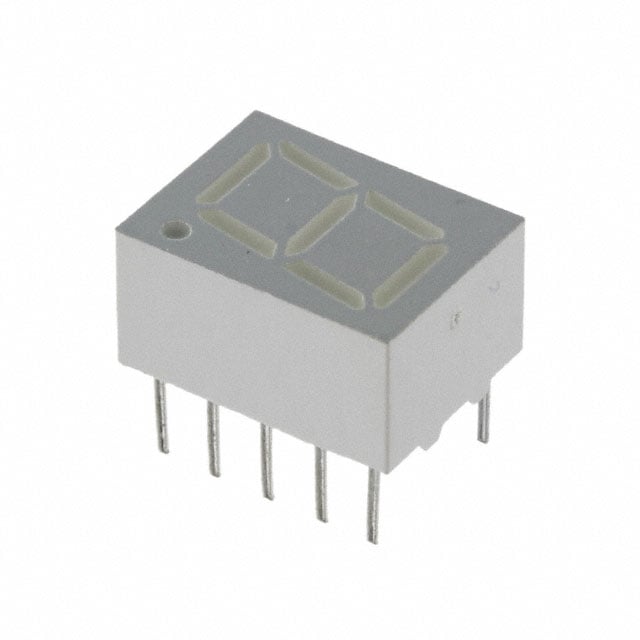

Image shown is a representation only
Manufacturer
Manufacturer No
HDSP-A103
Date Code
1305
Quantity
6
Availability
In Stock
Package
10-DIP (0.200", 5.08mm)
Packaging
Tube
Description
DISPLAY 7-SEG 0.3" SGL RED 10DIP
Detailed Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.7V 5mA 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) 10-DIP (0.200", 5.08mm)
Datasheet
Color
Red
Packaging
Tube
Common Pin
Common Cathode
Display Type
7-Segment
Manufacturer
Broadcom Limited
Current - Test
5mA
Package / Case
10-DIP (0.200", 5.08mm)
Digit/Alpha Size
0.30" (7.62mm)
Size / Dimension
0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm)
Wavelength - Peak
645nm
Base Product Number
HDSP-A10
Millicandela Rating
3.6mcd
Number of Characters
1
Power Dissipation (Max)
37mW
Voltage - Forward (Vf) (Typ)
1.7V
| Attribute | Value |
|---|---|
| Color | Red |
| Packaging | Tube |
| Common Pin | Common Cathode |
| Display Type | 7-Segment |
| Manufacturer | Broadcom Limited |
| Current - Test | 5mA |
| Package / Case | 10-DIP (0.200", 5.08mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Size / Dimension | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) |
| Wavelength - Peak | 645nm |
| Base Product Number | HDSP-A10 |
| Millicandela Rating | 3.6mcd |
| Number of Characters | 1 |
| Power Dissipation (Max) | 37mW |
| Voltage - Forward (Vf) (Typ) | 1.7V |
