Step1: Product
Broadcom Limited HDSM-543C

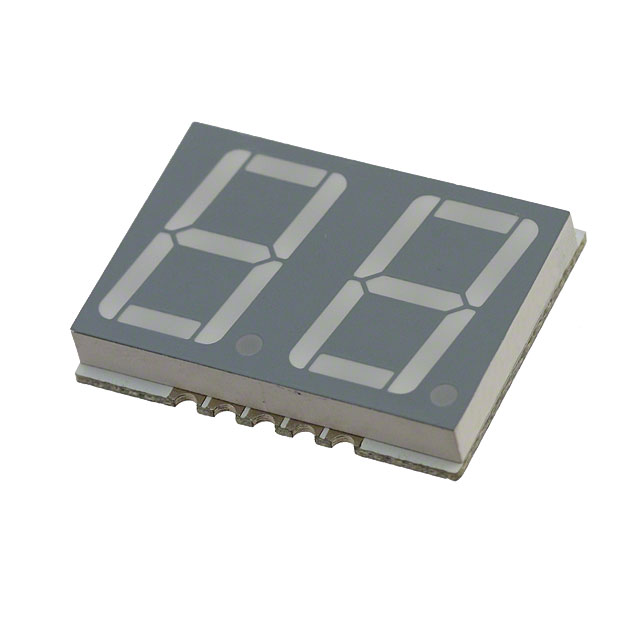

Image shown is a representation only
Manufacturer
Manufacturer No
HDSM-543C
Quantity
10
Availability
In Stock
Package
10-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DISPLAY 7SEG 0.56" DBL RED 10SMD
Detailed Description
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 20mA 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) 10-SMD, No Lead
Datasheet
Color
Red
Packaging
Tape & Reel (TR); Cut Tape (CT)
Common Pin
Common Cathode
Display Type
7-Segment
Manufacturer
Broadcom Limited
Current - Test
20mA
Package / Case
10-SMD, No Lead
Digit/Alpha Size
0.56" (14.22mm)
Size / Dimension
0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm)
Wavelength - Peak
632nm
Base Product Number
HDSM-543
Millicandela Rating
16mcd
Number of Characters
2
Power Dissipation (Max)
65mW
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Color | Red |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Common Pin | Common Cathode |
| Display Type | 7-Segment |
| Manufacturer | Broadcom Limited |
| Current - Test | 20mA |
| Package / Case | 10-SMD, No Lead |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Size / Dimension | 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) |
| Wavelength - Peak | 632nm |
| Base Product Number | HDSM-543 |
| Millicandela Rating | 16mcd |
| Number of Characters | 2 |
| Power Dissipation (Max) | 65mW |
| Voltage - Forward (Vf) (Typ) | 2V |
