Broadcom Limited HCPL-M453-500E

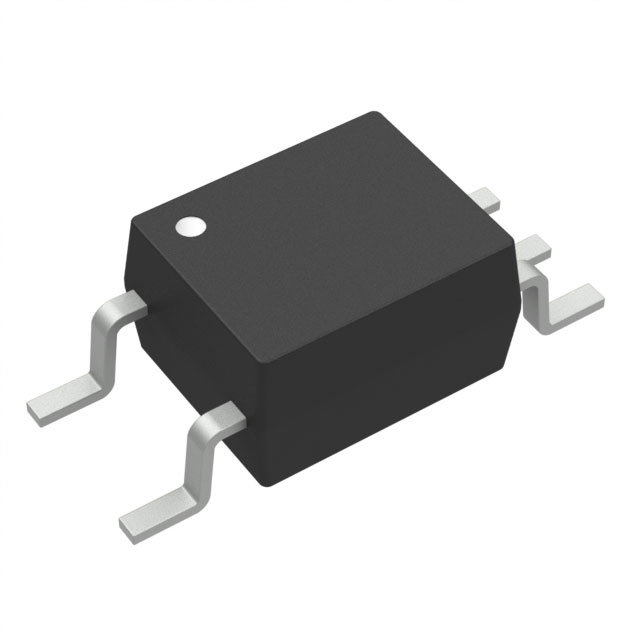

Image shown is a representation only
Manufacturer
Manufacturer No
HCPL-M453-500E
Quantity
41294
Availability
In Stock
Package
6-SOIC (0.173", 4.40mm Width), 5 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OPTOISOLTR 3.75KV 1CH TRANS 5-SO
Detailed Description
Optoisolator Transistor Output 3750Vrms 1 Channel 5-SO
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
DC
Output Type
Transistor
Part Status
Active
Manufacturer
Broadcom Limited
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.173", 4.40mm Width), 5 Leads
Number of Channels
1
Base Product Number
HCPL-M453
Voltage - Isolation
3750Vrms
Operating Temperature
-55°C ~ 100°C
Voltage - Output (Max)
20V
Supplier Device Package
5-SO
Current - Output / Channel
8mA
Current Transfer Ratio (Max)
50% @ 16mA
Current Transfer Ratio (Min)
20% @ 16mA
Voltage - Forward (Vf) (Typ)
1.5V
Turn On / Turn Off Time (Typ)
200ns, 600ns
Current - DC Forward (If) (Max)
25 mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Manufacturer | Broadcom Limited |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Number of Channels | 1 |
| Base Product Number | HCPL-M453 |
| Voltage - Isolation | 3750Vrms |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Output (Max) | 20V |
| Supplier Device Package | 5-SO |
| Current - Output / Channel | 8mA |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Current Transfer Ratio (Min) | 20% @ 16mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Turn On / Turn Off Time (Typ) | 200ns, 600ns |
| Current - DC Forward (If) (Max) | 25 mA |
