Step1: Product
Broadcom Limited AEDR-9930E2L-102

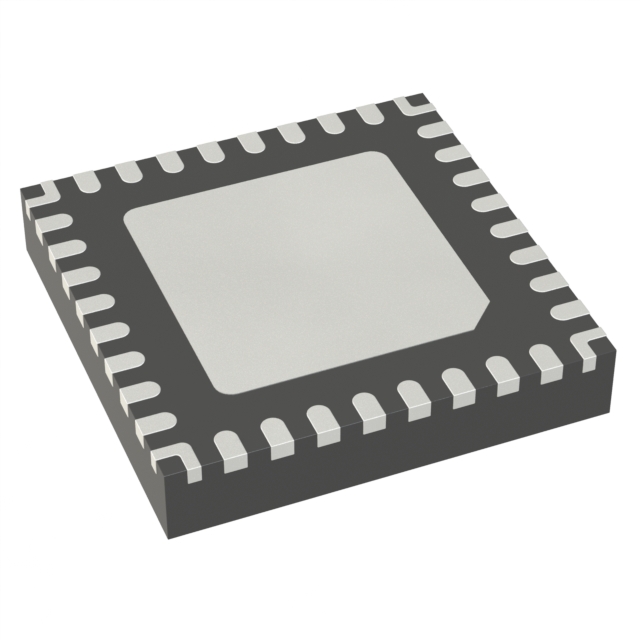

Image shown is a representation only
Manufacturer
Manufacturer No
AEDR-9930E2L-102
Package
32-TFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
AR3E2L, 397LPI REF ENC,TR 100 PC
Detailed Description
Reflective Optical Sensor 0.018" ~ 0.041" (0.45mm ~ 1.05mm) Codewheel/Codestrip 32-TFQFN Exposed Pad
DataSheet
Series
AEDR
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Broadcom Limited
Mounting Type
Surface Mount
Sensing Light
Infrared
Package / Case
32-TFQFN Exposed Pad
Sensing Method
Reflective
Sensing Object
Codewheel/Codestrip
Current - Supply
125 mA
Sensing Distance
0.018" ~ 0.041" (0.45mm ~ 1.05mm)
Voltage - Supply
4.5V ~ 5.5V
| Attribute | Value |
|---|---|
| Series | AEDR |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Broadcom Limited |
| Mounting Type | Surface Mount |
| Sensing Light | Infrared |
| Package / Case | 32-TFQFN Exposed Pad |
| Sensing Method | Reflective |
| Sensing Object | Codewheel/Codestrip |
| Current - Supply | 125 mA |
| Sensing Distance | 0.018" ~ 0.041" (0.45mm ~ 1.05mm) |
| Voltage - Supply | 4.5V ~ 5.5V |
