Step1: Product

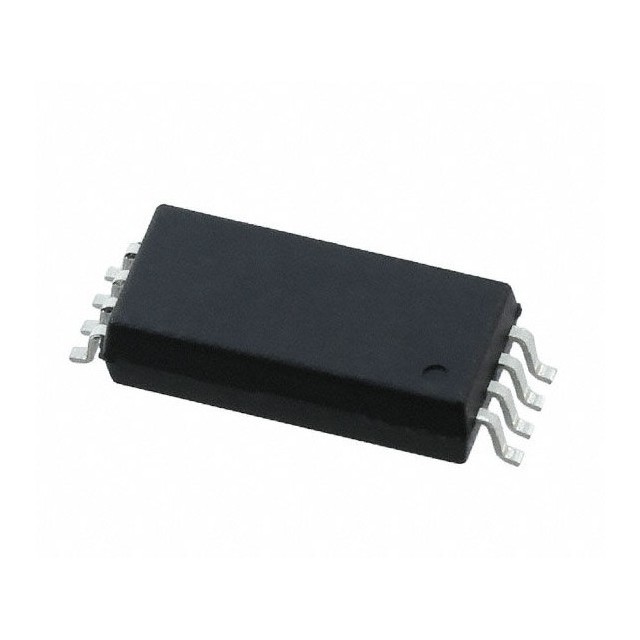

Broadcom Limited ACNT-H61L-500E
Image shown is a representation only
Manufacturer
Manufacturer No
ACNT-H61L-500E
Quantity
12782
Availability
In Stock
Package
8-SOIC (0.535", 13.60mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OPTOISOLTR 7.5KV PUSH PULL 8-SO
Detailed Description
Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 7500Vrms 1 Channel 20kV/µs CMTI 8-SO Stretched
DataSheet
Data Rate
10MBd
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
DC
Output Type
Push-Pull, Totem Pole
Part Status
Active
Manufacturer
Broadcom Limited
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.535", 13.60mm Width)
Voltage - Supply
2.7V ~ 5.5V
Number of Channels
1
Base Product Number
ACNT-H61
Voltage - Isolation
7500Vrms
Operating Temperature
-40°C ~ 105°C
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-SO Stretched
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 10MBd |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Part Status | Active |
| Manufacturer | Broadcom Limited |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.535", 13.60mm Width) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Number of Channels | 1 |
| Base Product Number | ACNT-H61 |
| Voltage - Isolation | 7500Vrms |
| Operating Temperature | -40°C ~ 105°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-SO Stretched |
| Common Mode Transient Immunity (Min) | 20kV/µs |
