Step1: Product
Bourns Inc. SRF3225TP-501Y

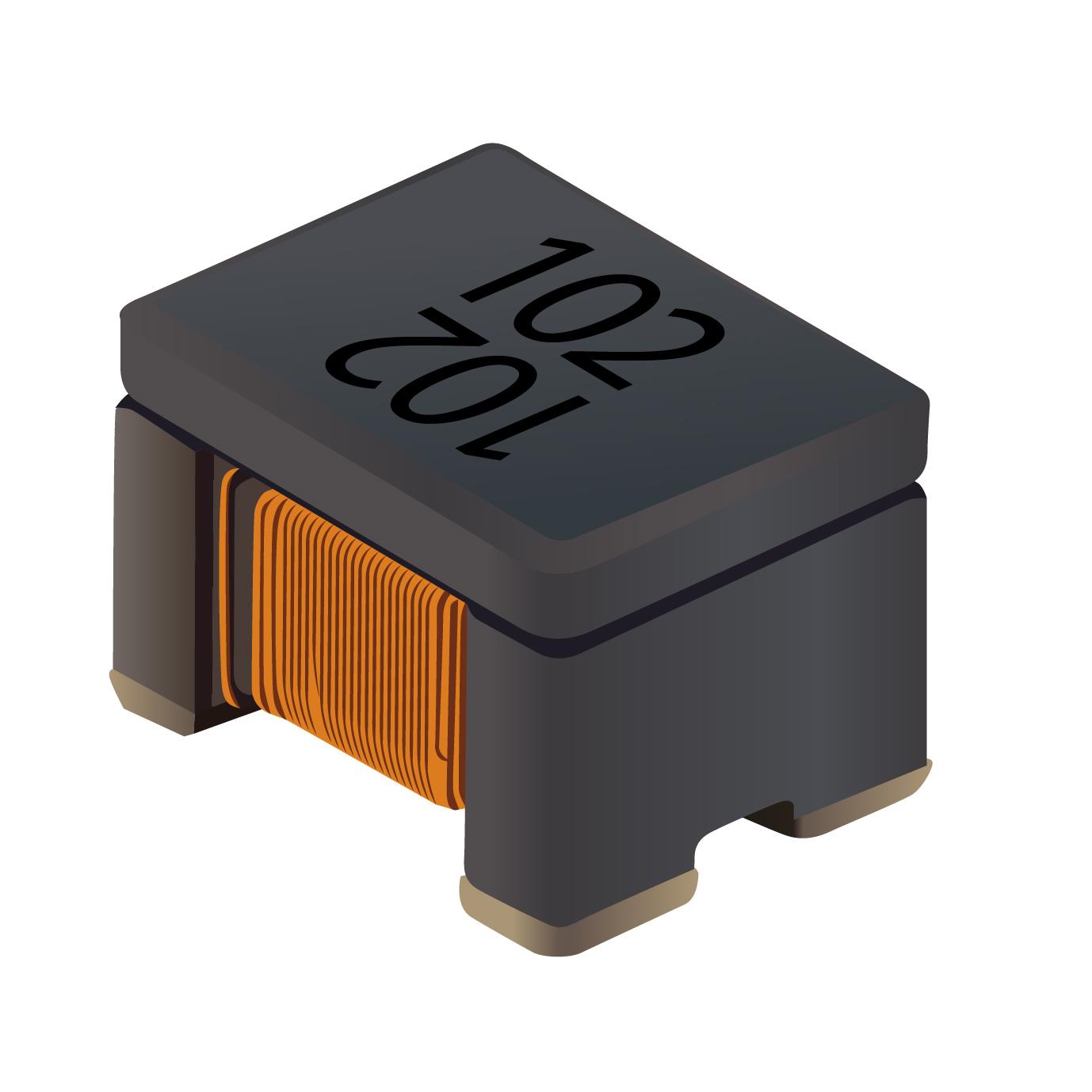

Image shown is a representation only
Manufacturer
Manufacturer No
SRF3225TP-501Y
Quantity
1214
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 2.2UH 2A 2LN 500 OHM SMD
Detailed Description
2.2 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500 Ohms @ 100 MHz 2A DCR 100mOhm
DataSheet
Series
SRF3225TP
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Power Line
Part Status
Active
Height (Max)
0.094" (2.40mm)
Manufacturer
Bourns Inc.
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Base Product Number
SRF3225TP
Voltage Rating - DC
60V
Current Rating (Max)
2A
Impedance @ Frequency
500 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 105°C
Inductance @ Frequency
2.2 µH @ 100 kHz
DC Resistance (DCR) (Max)
100mOhm
| Attribute | Value |
|---|---|
| Series | SRF3225TP |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.094" (2.40mm) |
| Manufacturer | Bourns Inc. |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Base Product Number | SRF3225TP |
| Voltage Rating - DC | 60V |
| Current Rating (Max) | 2A |
| Impedance @ Frequency | 500 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 105°C |
| Inductance @ Frequency | 2.2 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 100mOhm |
