Step1: Product

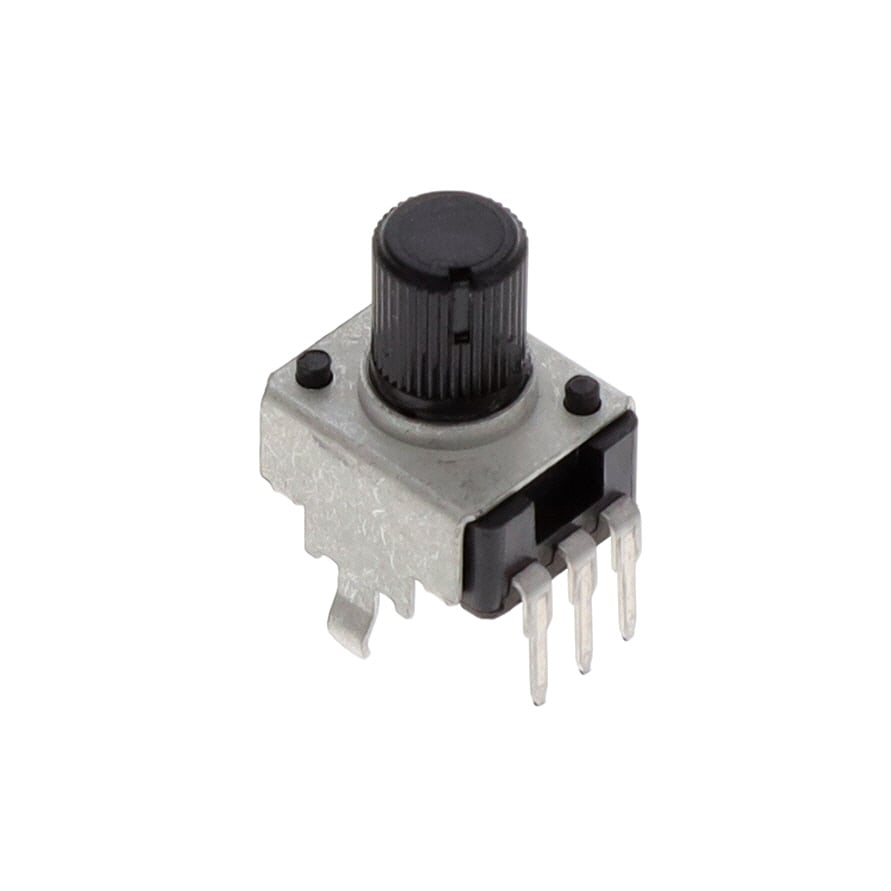

Bourns Inc. PTV09A-4015U-B102
Image shown is a representation only
Manufacturer
Manufacturer No
PTV09A-4015U-B102
Quantity
77
Availability
In Stock
Packaging
Tray
Description
POT 1K OHM 1/20W CARBON LINEAR
Detailed Description
1k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
Datasheet
Taper
Linear
Series
Pro Audio PTV09
Rotation
280°
Packaging
Tray
Tolerance
±20%
Size - Body
Rectangular - 0.433" x 0.382" Face (11.00mm x 9.70mm)
Manufacturer
Bourns Inc.
Actuator Type
Knurled
Mounting Type
Through Hole, Snap In
Power (Watts)
0.05W, 1/20W
Actuator Length
0.591" (15.00mm)
Adjustment Type
Top Adjustment
Built in Switch
None
Number of Gangs
1
Number of Turns
1.0
Actuator Diameter
0.236" (6.00mm)
Resistance (Ohms)
1k
Termination Style
PC Pins, Board Locks
Resistive Material
Carbon
Base Product Number
PTV09A
| Attribute | Value |
|---|---|
| Taper | Linear |
| Series | Pro Audio PTV09 |
| Rotation | 280° |
| Packaging | Tray |
| Tolerance | ±20% |
| Size - Body | Rectangular - 0.433" x 0.382" Face (11.00mm x 9.70mm) |
| Manufacturer | Bourns Inc. |
| Actuator Type | Knurled |
| Mounting Type | Through Hole, Snap In |
| Power (Watts) | 0.05W, 1/20W |
| Actuator Length | 0.591" (15.00mm) |
| Adjustment Type | Top Adjustment |
| Built in Switch | None |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
| Actuator Diameter | 0.236" (6.00mm) |
| Resistance (Ohms) | 1k |
| Termination Style | PC Pins, Board Locks |
| Resistive Material | Carbon |
| Base Product Number | PTV09A |
