Step1: Product

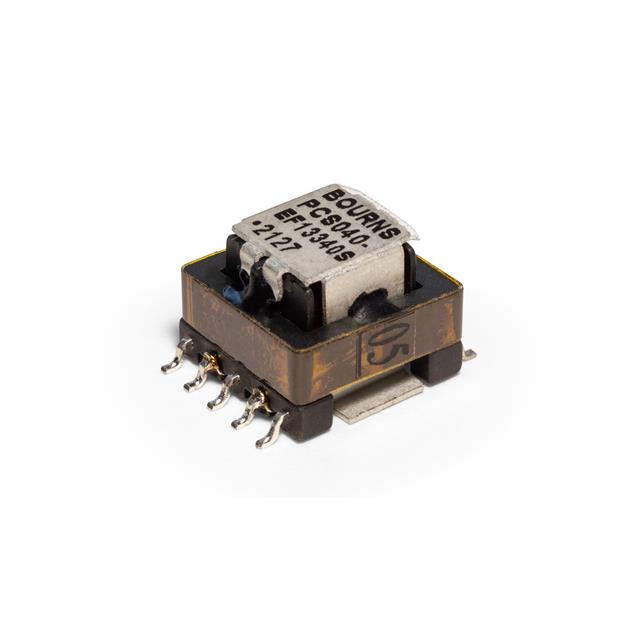

Bourns Inc. PCS040-EF13340S
Image shown is a representation only
Manufacturer
Manufacturer No
PCS040-EF13340S
Packaging
Tape & Reel (TR)
Description
CURRENT SENSE TRANSF 40A 340UH
Detailed Description
40 A 1:20 Current Sense Transformer 1MHz 1mOhm Primary, 180mOhm Secondary Max 340 µH Surface Mount
DataSheet
Type
Invasive
Series
PCS
Packaging
Tape & Reel (TR)
Inductance
340 µH
Part Status
Active
Manufacturer
Bourns Inc.
Current Ratio
20:1
Mounting Type
Surface Mount
ET (Volt-Time)
50.8VµS
Frequency Range
1MHz
Termination Style
Gull Wing
DC Resistance (DCR)
1mOhm Primary, 180mOhm Secondary Max
Current Rating (Amps)
40 A
Height - Seated (Max)
0.413" (10.50mm)
Turns Ratio - Primary:Secondary
1:20
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | PCS |
| Packaging | Tape & Reel (TR) |
| Inductance | 340 µH |
| Part Status | Active |
| Manufacturer | Bourns Inc. |
| Current Ratio | 20:1 |
| Mounting Type | Surface Mount |
| ET (Volt-Time) | 50.8VµS |
| Frequency Range | 1MHz |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 1mOhm Primary, 180mOhm Secondary Max |
| Current Rating (Amps) | 40 A |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Turns Ratio - Primary:Secondary | 1:20 |
