Step1: Product
Bourns Inc. MF-USML500/12-2

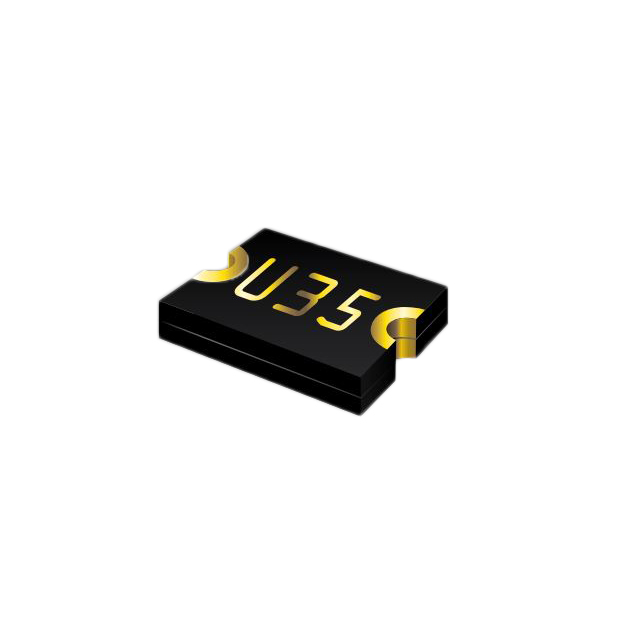

Image shown is a representation only
Manufacturer
Manufacturer No
MF-USML500/12-2
Quantity
505
Availability
In Stock
Package
1210 (3225 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 12V 5A 1210
Detailed Description
Polymeric PTC Resettable Fuse 12V 5 A Ih Surface Mount 1210 (3225 Metric), Concave
DataSheet
Type
Polymeric
Series
Multifuse®, MF-USML/X
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Bourns Inc.
Time to Trip
2 s
Current - Max
50 A
Mounting Type
Surface Mount
Voltage - Max
12V
Package / Case
1210 (3225 Metric), Concave
Approval Agency
cUL, cURus, TUV
Thickness (Max)
0.047" (1.20mm)
Size / Dimension
0.127" L x 0.101" W (3.22mm x 2.58mm)
Base Product Number
MF-USML
Current - Trip (It)
10 A
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
5 A
Resistance - Initial (Ri) (Min)
1 mOhms
Resistance - Post Trip (R1) (Max)
12 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | Multifuse®, MF-USML/X |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Bourns Inc. |
| Time to Trip | 2 s |
| Current - Max | 50 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 12V |
| Package / Case | 1210 (3225 Metric), Concave |
| Approval Agency | cUL, cURus, TUV |
| Thickness (Max) | 0.047" (1.20mm) |
| Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
| Base Product Number | MF-USML |
| Current - Trip (It) | 10 A |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 5 A |
| Resistance - Initial (Ri) (Min) | 1 mOhms |
| Resistance - Post Trip (R1) (Max) | 12 mOhms |
