Step1: Product

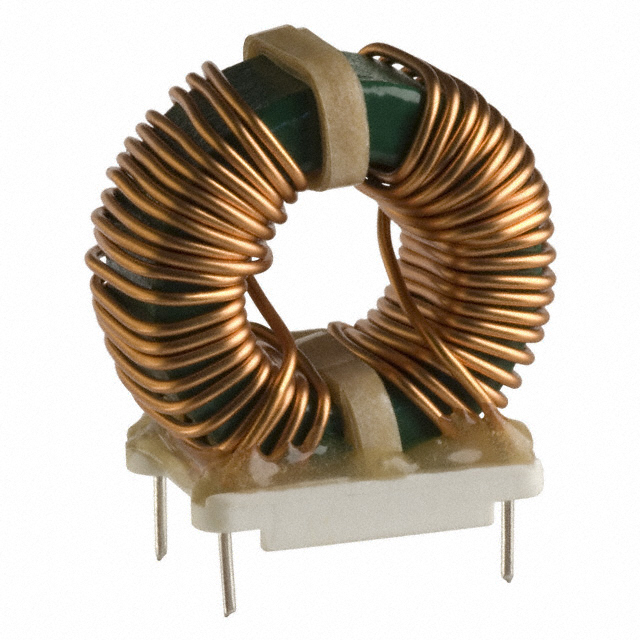

Bourns Inc. 8113-RC
Image shown is a representation only
Manufacturer
Manufacturer No
8113-RC
Package
Vertical, 4 PC Pin
Packaging
Bulk
Description
CMC 5MH 8.9A 2LN TH
Detailed Description
5 mH 2 Line Common Mode Choke Through Hole 8.9A DCR 22mOhm
DataSheet
Series
8100
Packaging
Bulk
Part Status
Active
Height (Max)
1.500" (38.10mm)
Manufacturer
Bourns Inc.
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
1.450" L x 0.800" W (36.83mm x 20.32mm)
Base Product Number
8113
Current Rating (Max)
8.9A
Operating Temperature
-55°C ~ 105°C
Inductance @ Frequency
5 mH @ 1 kHz
DC Resistance (DCR) (Max)
22mOhm
| Attribute | Value |
|---|---|
| Series | 8100 |
| Packaging | Bulk |
| Part Status | Active |
| Height (Max) | 1.500" (38.10mm) |
| Manufacturer | Bourns Inc. |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 1.450" L x 0.800" W (36.83mm x 20.32mm) |
| Base Product Number | 8113 |
| Current Rating (Max) | 8.9A |
| Operating Temperature | -55°C ~ 105°C |
| Inductance @ Frequency | 5 mH @ 1 kHz |
| DC Resistance (DCR) (Max) | 22mOhm |
