Step1: Product

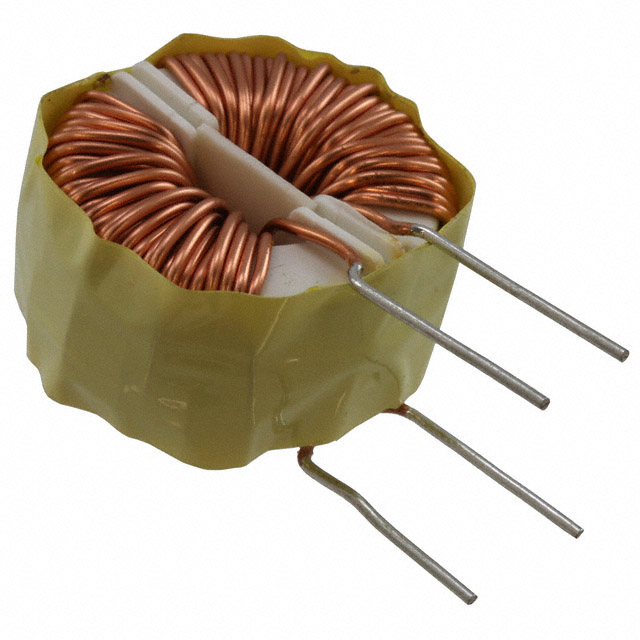

Bourns Inc. 7123-RC
Image shown is a representation only
Manufacturer
Manufacturer No
7123-RC
Package
Vertical, No Base, 4 PC Pin
Packaging
Bulk
Description
CMC 9.35MH 5A 2LN TH
Detailed Description
9.35 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 5A DCR 72mOhm
DataSheet
Series
7100
Packaging
Bulk
Part Status
Active
Height (Max)
1.230" (31.24mm)
Manufacturer
Bourns Inc.
Mounting Type
Through Hole
Package / Case
Vertical, No Base, 4 PC Pin
Number of Lines
2
Size / Dimension
1.230" Dia x 0.900" W (31.24mm x 22.86mm)
Base Product Number
7123
Current Rating (Max)
5A
Operating Temperature
-55°C ~ 105°C
Inductance @ Frequency
9.35 mH @ 1 kHz
DC Resistance (DCR) (Max)
72mOhm
| Attribute | Value |
|---|---|
| Series | 7100 |
| Packaging | Bulk |
| Part Status | Active |
| Height (Max) | 1.230" (31.24mm) |
| Manufacturer | Bourns Inc. |
| Mounting Type | Through Hole |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 1.230" Dia x 0.900" W (31.24mm x 22.86mm) |
| Base Product Number | 7123 |
| Current Rating (Max) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Inductance @ Frequency | 9.35 mH @ 1 kHz |
| DC Resistance (DCR) (Max) | 72mOhm |
