Step1: Product

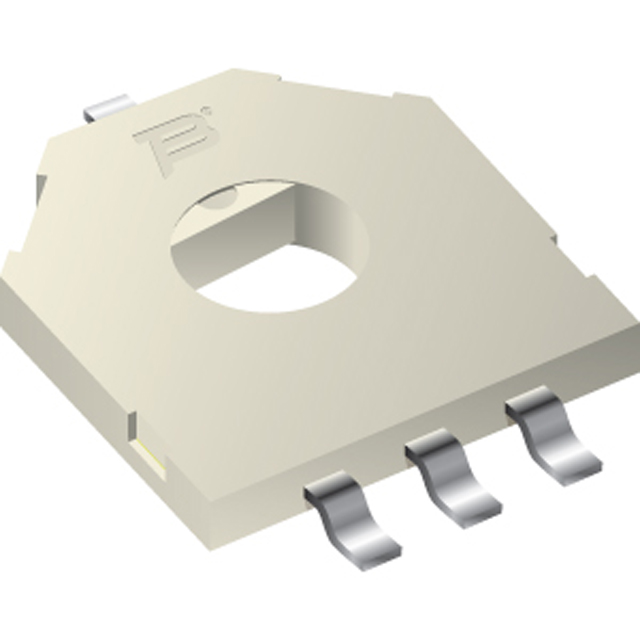

Bourns Inc. 3382G-1-203G
Image shown is a representation only
Manufacturer
Manufacturer No
3382G-1-203G
Package
4-SMD, Gull Wing
Packaging
Tape & Reel (TR)
Description
CAP
Detailed Description
Resistive Sensor Rotary Position Hole for Shaft PC Pin
DataSheet
Grade
Automotive
Output
Resistive
Series
3382
Linearity
±2%
Packaging
Tape & Reel (TR)
Resistance
20 kOhms
Technology
Resistive
Part Status
Active
Linear Range
0 ~ 12mm (0 ~ 0.47")
Manufacturer
Bourns Inc.
Actuator Type
Hole for Shaft
For Measuring
Rotary Position
Mounting Type
Surface Mount
Output Signal
Clockwise Increase
Qualification
AEC-Q200
Package / Case
4-SMD, Gull Wing
Voltage - Supply
16V
Termination Style
PC Pin
Resistance Tolerance
±30%
Operating Temperature
-40°C ~ 120°C
Supplier Device Package
4-SMD
Rotation Angle - Electrical, Mechanical
0° ~ 330°, Continuous
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | Resistive |
| Series | 3382 |
| Linearity | ±2% |
| Packaging | Tape & Reel (TR) |
| Resistance | 20 kOhms |
| Technology | Resistive |
| Part Status | Active |
| Linear Range | 0 ~ 12mm (0 ~ 0.47") |
| Manufacturer | Bourns Inc. |
| Actuator Type | Hole for Shaft |
| For Measuring | Rotary Position |
| Mounting Type | Surface Mount |
| Output Signal | Clockwise Increase |
| Qualification | AEC-Q200 |
| Package / Case | 4-SMD, Gull Wing |
| Voltage - Supply | 16V |
| Termination Style | PC Pin |
| Resistance Tolerance | ±30% |
| Operating Temperature | -40°C ~ 120°C |
| Supplier Device Package | 4-SMD |
| Rotation Angle - Electrical, Mechanical | 0° ~ 330°, Continuous |
