Step1: Product
Bellnix Co., Ltd. MHV12-470S06N

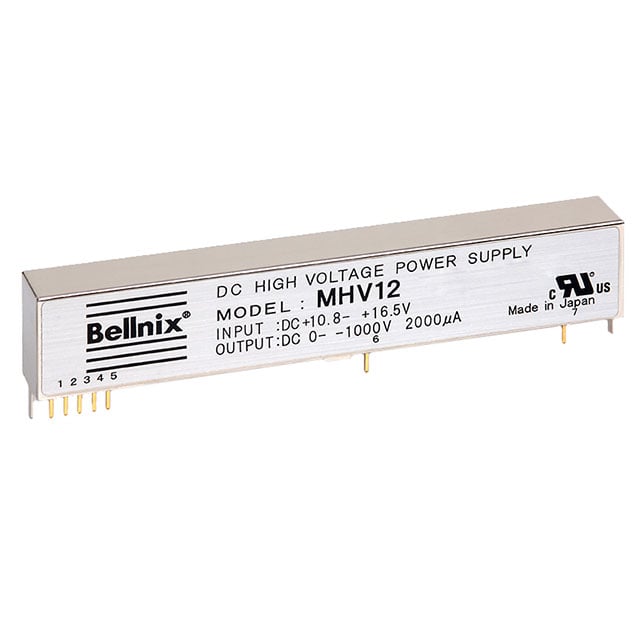

Image shown is a representation only
Manufacturer
Manufacturer No
MHV12-470S06N
Package
7-SIP Module
Packaging
Bulk
Description
DC DC CONVERTER -470V 2.6W
Detailed Description
High Voltage - Non-Isolated Module DC DC Converter 1 Output -470V 5.6mA 10.8V - 13.2V Input
DataSheet
Mfr
Bellnix Co., Ltd.
Type
High Voltage - Non-Isolated Module
Series
MHV
Features
Adjustable Output, Remote On/Off
Packaging
Bulk
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
2.6 W
Package / Case
7-SIP Module
Approval Agency
cURus
Control Features
Enable, Active Low
Size / Dimension
4.33" L x 0.47" W x 0.78" H (110.0mm x 12.0mm x 19.8mm)
Number of Outputs
1
Voltage - Output 1
-470V
Base Product Number
MHV12
Operating Temperature
-10°C ~ 60°C (With Derating)
Voltage - Input (Max)
13.2V
Voltage - Input (Min)
10.8V
Current - Output (Max)
5.6mA
| Attribute | Value |
|---|---|
| Mfr | Bellnix Co., Ltd. |
| Type | High Voltage - Non-Isolated Module |
| Series | MHV |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Bulk |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 2.6 W |
| Package / Case | 7-SIP Module |
| Approval Agency | cURus |
| Control Features | Enable, Active Low |
| Size / Dimension | 4.33" L x 0.47" W x 0.78" H (110.0mm x 12.0mm x 19.8mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | -470V |
| Base Product Number | MHV12 |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Voltage - Input (Max) | 13.2V |
| Voltage - Input (Min) | 10.8V |
| Current - Output (Max) | 5.6mA |
