Step1: Product
Belden Inc. 89207 010500

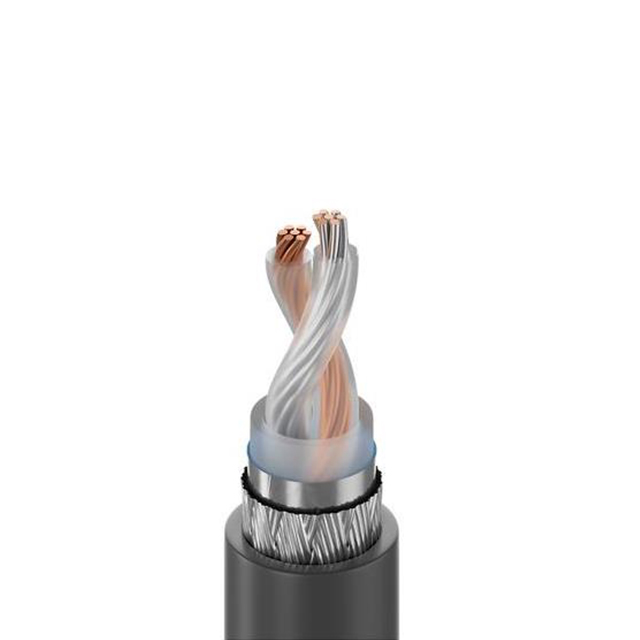

Image shown is a representation only
Manufacturer
Manufacturer No
89207 010500
Packaging
Spool
Description
CABLE TWINAXIAL PLEN 20AWG 500'
Detailed Description
Twinaxial - Plenum Cable 20 AWG 500.0' (152.40m) 100 Ohms
DataSheet
Length
500.0' (152.40m)
Series
Classics
Impedance
100 Ohms
Packaging
Spool
Cable Type
Twinaxial - Plenum
Wire Gauge
20 AWG
Part Status
Active
Shield Type
Foil, Braid
Jacket Color
Black
Manufacturer
Belden Inc.
Shield Coverage
100%, 85%
Shield Material
Aluminum; Copper, Tinned
Conductor Strand
7 Strands / 28 AWG
Conductor Material
Copper, Bare; Copper, Tinned
Base Product Number
89207
Dielectric Diameter
0.072" (1.83mm)
Dielectric Material
Fluorinated Ethylene Propylene (FEP)
Operating Temperature
-70°C ~ 200°C
Jacket (Insulation) Diameter
0.259" (6.58mm)
Jacket (Insulation) Material
Fluorinated Ethylene-Propylene (FEP)
VoP, Velocity of Propagation
69.5
| Attribute | Value |
|---|---|
| Length | 500.0' (152.40m) |
| Series | Classics |
| Impedance | 100 Ohms |
| Packaging | Spool |
| Cable Type | Twinaxial - Plenum |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Shield Type | Foil, Braid |
| Jacket Color | Black |
| Manufacturer | Belden Inc. |
| Shield Coverage | 100%, 85% |
| Shield Material | Aluminum; Copper, Tinned |
| Conductor Strand | 7 Strands / 28 AWG |
| Conductor Material | Copper, Bare; Copper, Tinned |
| Base Product Number | 89207 |
| Dielectric Diameter | 0.072" (1.83mm) |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Operating Temperature | -70°C ~ 200°C |
| Jacket (Insulation) Diameter | 0.259" (6.58mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| VoP, Velocity of Propagation | 69.5 |
