Step1: Product

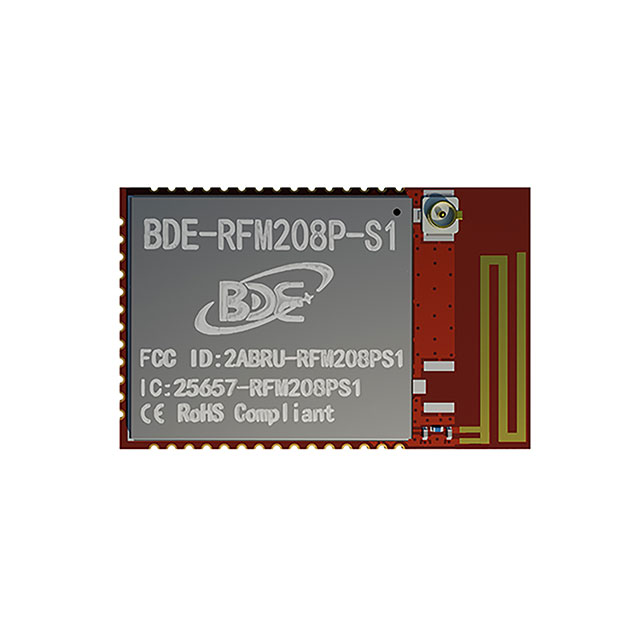

BDE Technology BDE-RFM208P-S1
Image shown is a representation only
Manufacturer
Manufacturer No
BDE-RFM208P-S1
Package
42-SMD Module
Packaging
Tape & Reel (TR)
Description
RF TXRX MOD BT INT PCB +U.FL SMD
Detailed Description
Bluetooth, Zigbee, Thread, Wi-SUN, Amazon Sidewalk IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.0, Zigbee, Thread, MIOTY Transceiver Module 868MHz, 915MHz, 2.4GHz Integrated, PCB +U.FL Surface Mount
DataSheet
Mfr
BDE Technology
Protocol
IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.0, Zigbee, Thread, MIOTY
Data Rate
2Mbps
Frequency
868MHz, 915MHz, 2.4GHz
Packaging
Tape & Reel (TR)
Modulation
2GFSK, 4GFSK, GFSK
Memory Size
352kB Flash, 80kB RAM
Part Status
Active
Sensitivity
-122dBm
Antenna Type
Integrated, PCB +U.FL
Mounting Type
Surface Mount
Package / Case
42-SMD Module
Power - Output
20dBm
Voltage - Supply
1.8V ~ 3.8V
Serial Interfaces
I2C, I2S, SPI, UART
RF Family/Standard
Bluetooth, Zigbee, Thread, Wi-SUN, Amazon Sidewalk
Utilized IC / Part
CC1352P
Current - Receiving
5.8mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
63mA ~ 79mA
| Attribute | Value |
|---|---|
| Mfr | BDE Technology |
| Protocol | IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.0, Zigbee, Thread, MIOTY |
| Data Rate | 2Mbps |
| Frequency | 868MHz, 915MHz, 2.4GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 2GFSK, 4GFSK, GFSK |
| Memory Size | 352kB Flash, 80kB RAM |
| Part Status | Active |
| Sensitivity | -122dBm |
| Antenna Type | Integrated, PCB +U.FL |
| Mounting Type | Surface Mount |
| Package / Case | 42-SMD Module |
| Power - Output | 20dBm |
| Voltage - Supply | 1.8V ~ 3.8V |
| Serial Interfaces | I2C, I2S, SPI, UART |
| RF Family/Standard | Bluetooth, Zigbee, Thread, Wi-SUN, Amazon Sidewalk |
| Utilized IC / Part | CC1352P |
| Current - Receiving | 5.8mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 63mA ~ 79mA |
