Step1: Product

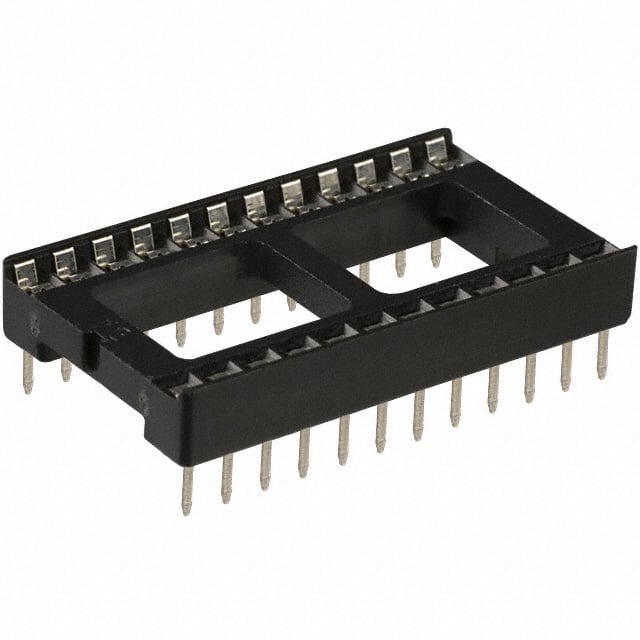

Assmann WSW Components A 24-LC-TT
Image shown is a representation only
Manufacturer
Manufacturer No
A 24-LC-TT
Packaging
Tube
Description
CONN IC DIP SOCKET 24POS TIN
Detailed Description
24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
DataSheet
Type
DIP, 0.6" (15.24mm) Row Spacing
Features
Open Frame
Packaging
Tube
Part Status
Active
Termination
Solder
Manufacturer
Assmann WSW Components
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polybutylene Terephthalate (PBT)
Contact Resistance
30mOhm
Base Product Number
A 24-LC
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Termination Post Length
0.124" (3.15mm)
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Number of Positions or Pins (Grid)
24 (2 x 12)
| Attribute | Value |
|---|---|
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Assmann WSW Components |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Contact Resistance | 30mOhm |
| Base Product Number | A 24-LC |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Termination Post Length | 0.124" (3.15mm) |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 24 (2 x 12) |
