Step1: Product

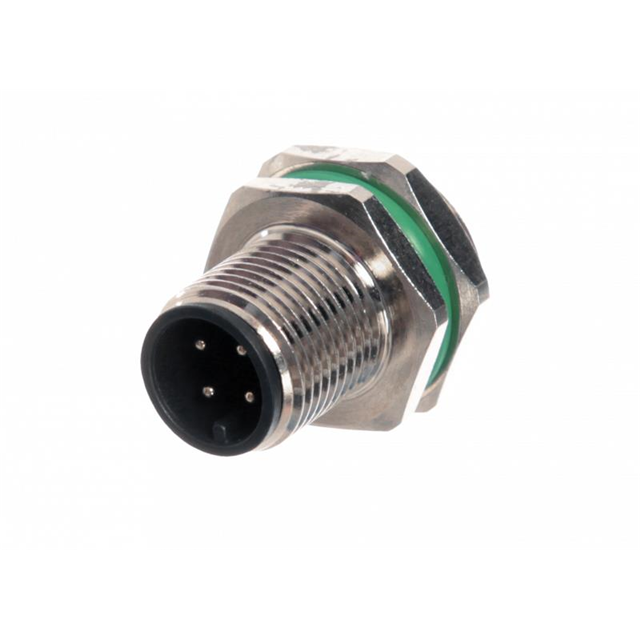

Assmann WSW Components A-M12-05-MGMB-GHB2
Image shown is a representation only
Manufacturer
Manufacturer No
A-M12-05-MGMB-GHB2
Packaging
Bag
Description
CONN PLUG MALE 5POS SOLDER CUP
Detailed Description
5 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Mfr
Assmann WSW Components
Color
Silver
Packaging
Bag
Shielding
Unshielded
Orientation
B
Termination
Solder Cup
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
60VAC/DC
Insert Material
Epoxy, Plastic
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
A-M12
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
1.00µin (0.025µm)
| Attribute | Value |
|---|---|
| Mfr | Assmann WSW Components |
| Color | Silver |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | B |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 60VAC/DC |
| Insert Material | Epoxy, Plastic |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | A-M12 |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
