Step1: Product
Assmann WSW Components A-CCS 020-Z-SM/T

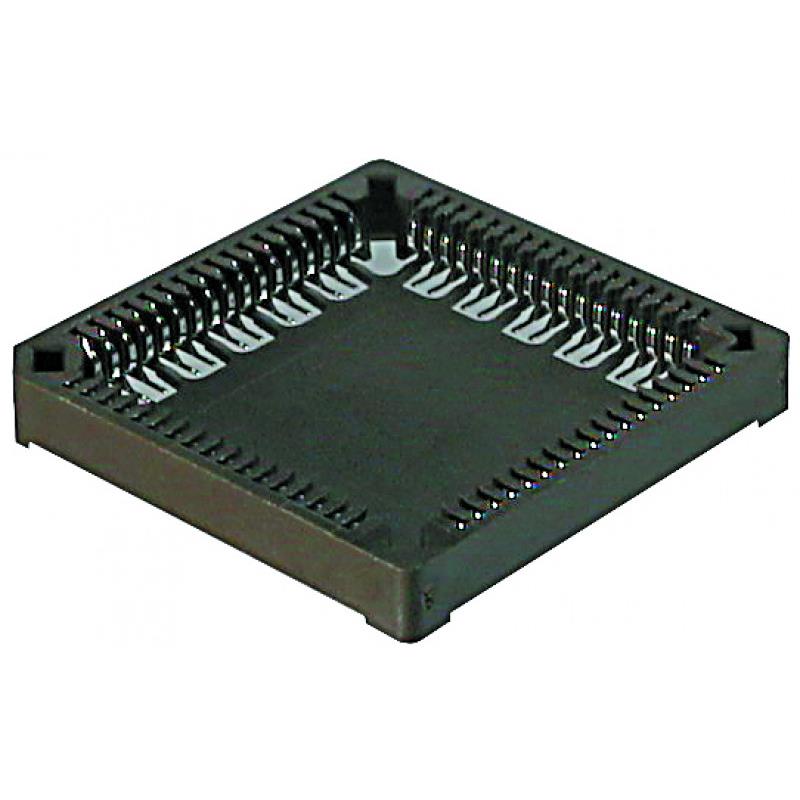

Image shown is a representation only
Manufacturer
Manufacturer No
A-CCS 020-Z-SM/T
Packaging
Tape & Reel (TR)
Description
IC SOCKET, CHIP CARRIER, 1.27MM,
Detailed Description
20 Pos PLCC Socket Tin Surface Mount
DataSheet
Type
PLCC
Features
Closed Frame
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
Solder
Manufacturer
Assmann WSW Components
Pitch - Post
0.050" (1.27mm)
Mounting Type
Surface Mount
Pitch - Mating
0.050" (1.27mm)
Housing Material
Polyphenylene Sulfide (PPS), Glass Filled
Contact Resistance
20mOhm
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
160.0µin (4.06µm)
Contact Finish Thickness - Mating
160.0µin (4.06µm)
Number of Positions or Pins (Grid)
20
| Attribute | Value |
|---|---|
| Type | PLCC |
| Features | Closed Frame |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Assmann WSW Components |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Resistance | 20mOhm |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Number of Positions or Pins (Grid) | 20 |
