Step1: Product
ARTESYN / Advanced Energy LPQ202-M

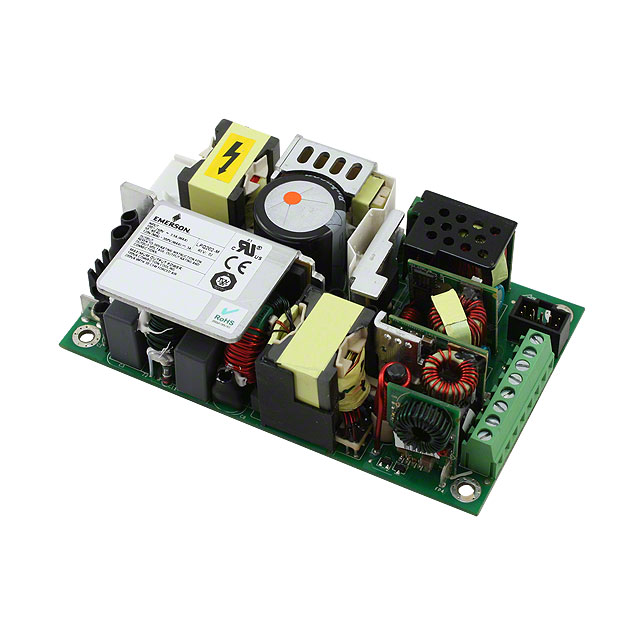

Image shown is a representation only
Manufacturer
Manufacturer No
LPQ202-M
Quantity
1
Availability
In Stock
Packaging
Tray
Description
AC/DC CNVT 5V 12V 24V -12V 100W
Detailed Description
Open Frame AC DC Converters 4 Output 5V 12V 24V -12V 90 ~ 264 VAC Input
DataSheet
Mfr
ARTESYN / Advanced Energy
Type
Open Frame
Series
LPQ200-M (200W)
Features
Adjustable Output, DC Input Capable, Remote Sense, Universal Input
Packaging
Tray
Efficiency
84%
Part Status
Active
Applications
ITE (Commercial), Medical
Mounting Type
Chassis Mount
Power (Watts)
100W (200W Forced Air)
Approval Agency
CB, CE
Voltage - Input
90 ~ 264 VAC
Size / Dimension
5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm)
Number of Outputs
4
Current - Output 1
13 A
Current - Output 2
5 A
Current - Output 3
1.5 A
Current - Output 4
1 A
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
24V
Voltage - Output 4
-12V
Base Product Number
LPQ202
Minimum Load Required
No
Operating Temperature
0°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | ARTESYN / Advanced Energy |
| Type | Open Frame |
| Series | LPQ200-M (200W) |
| Features | Adjustable Output, DC Input Capable, Remote Sense, Universal Input |
| Packaging | Tray |
| Efficiency | 84% |
| Part Status | Active |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 100W (200W Forced Air) |
| Approval Agency | CB, CE |
| Voltage - Input | 90 ~ 264 VAC |
| Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
| Number of Outputs | 4 |
| Current - Output 1 | 13 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | 1.5 A |
| Current - Output 4 | 1 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 24V |
| Voltage - Output 4 | -12V |
| Base Product Number | LPQ202 |
| Minimum Load Required | No |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
