Step1: Product

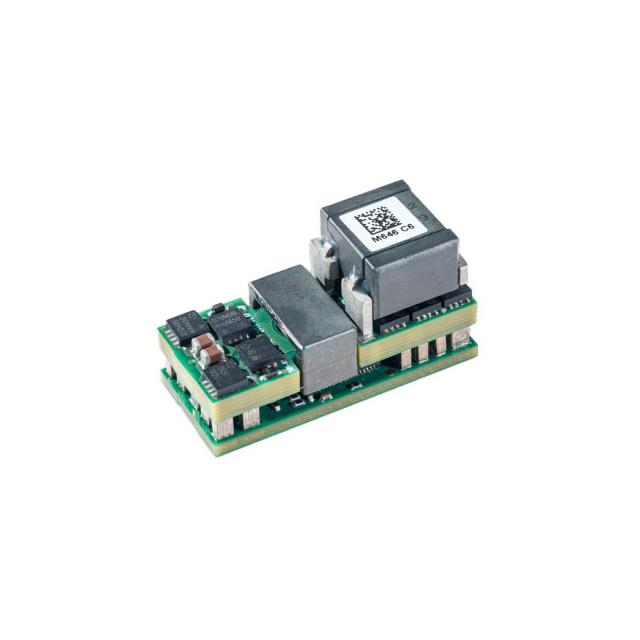

ARTESYN / Advanced Energy ADC100M-04J
Image shown is a representation only
Manufacturer
Manufacturer No
ADC100M-04J
Packaging
Bulk
Description
120W, 40~60V, SINGLE, 1.0V@120A,
Detailed Description
Open Frame DC DC Converter 1 Output 1V 120A 60V Input
DataSheet
Type
Open Frame
Series
ADC100M
Packaging
Bulk
Efficiency
91%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
ARTESYN / Advanced Energy
Mounting Type
Chassis Mount
Power (Watts)
120W
Standard Number
62368-1
Size / Dimension
1.18" L x 0.50" W x 0.67" H (30.0mm x 12.7mm x 17.0mm)
Number of Outputs
1
Voltage - Output 1
1V
Voltage - Isolation
500 V
Operating Temperature
0°C ~ 55°C
Voltage - Input (Max)
60V
Voltage - Input (Min)
40V
Current - Output (Max)
120A
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | ADC100M |
| Packaging | Bulk |
| Efficiency | 91% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | ARTESYN / Advanced Energy |
| Mounting Type | Chassis Mount |
| Power (Watts) | 120W |
| Standard Number | 62368-1 |
| Size / Dimension | 1.18" L x 0.50" W x 0.67" H (30.0mm x 12.7mm x 17.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 1V |
| Voltage - Isolation | 500 V |
| Operating Temperature | 0°C ~ 55°C |
| Voltage - Input (Max) | 60V |
| Voltage - Input (Min) | 40V |
| Current - Output (Max) | 120A |
