Step1: Product

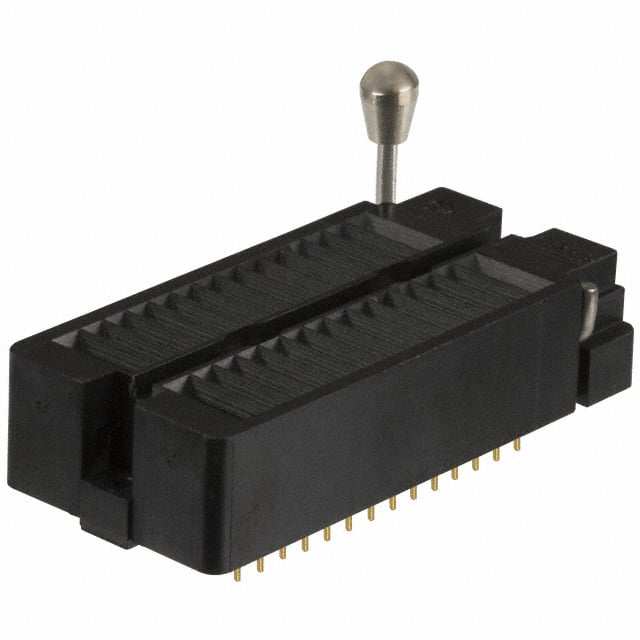

Aries Electronics 28-6554-11
Image shown is a representation only
Manufacturer
Manufacturer No
28-6554-11
Packaging
Bulk
Description
CONN IC DIP SOCKET ZIF 28POS GLD
Detailed Description
28 (2 x 14) Pos DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
DataSheet
Type
DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing
Series
55
Features
Closed Frame
Packaging
Bulk
Part Status
Active
Termination
Solder
Manufacturer
Aries Electronics
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polyphenylene Sulfide (PPS), Glass Filled
Base Product Number
28-6554
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.110" (2.78mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Number of Positions or Pins (Grid)
28 (2 x 14)
| Attribute | Value |
|---|---|
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Series | 55 |
| Features | Closed Frame |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Aries Electronics |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Base Product Number | 28-6554 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.110" (2.78mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
