Step1: Product
Arduino TPX00200

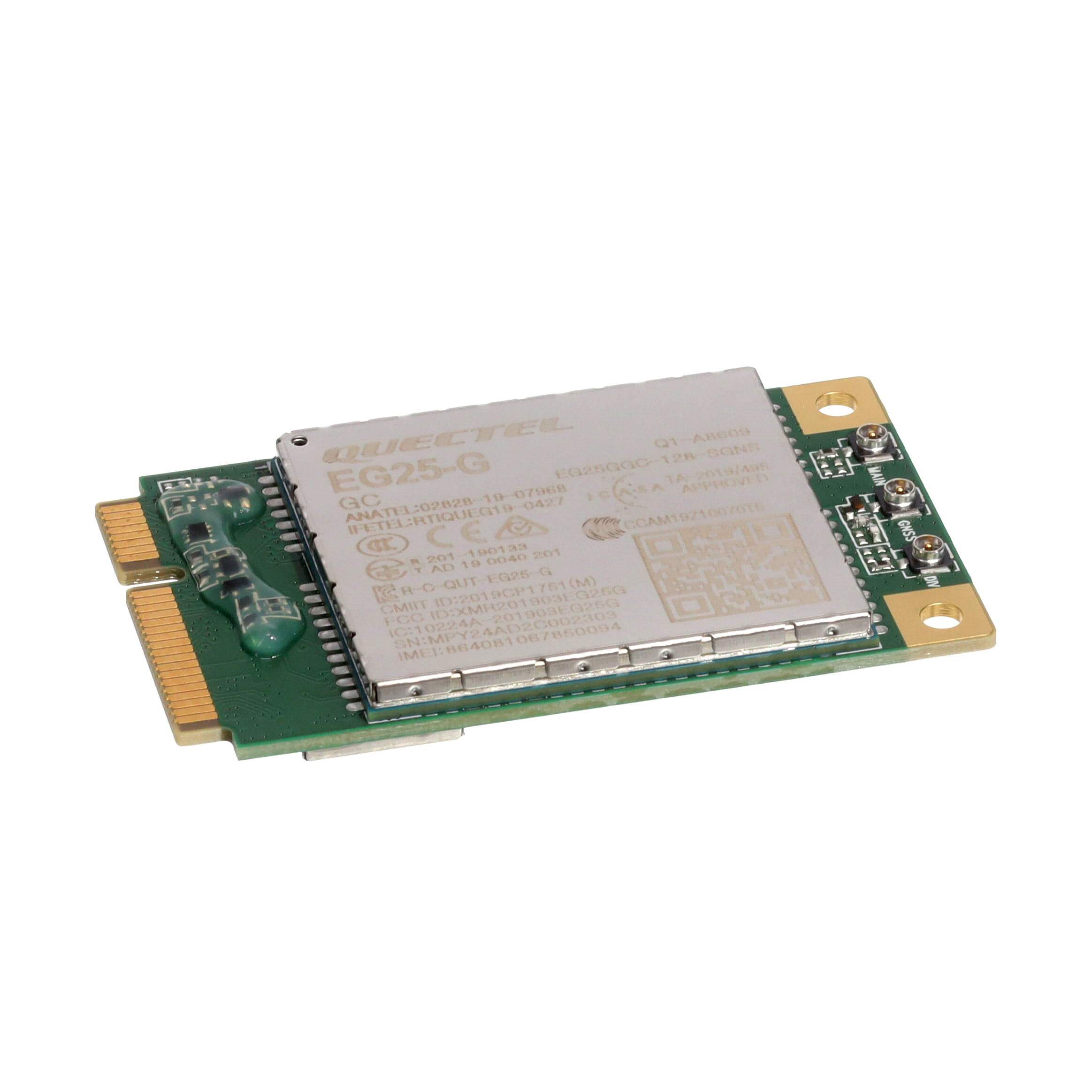

Image shown is a representation only
Manufacturer
Manufacturer No
TPX00200
Package
Module
Packaging
Box
Description
4G MODULE GLOBAL
Detailed Description
Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSDPA, HSPA+, HSUPA, LTE, QZSS, UMTS, WCDMA Transceiver Module 814MHz ~ 2.69GHz Antenna Not Included Card Edge
DataSheet
Mfr
Arduino
Series
Arduino Cellular, Pro
Protocol
BeiDou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSDPA, HSPA+, HSUPA, LTE, QZSS, UMTS, WCDMA
Data Rate
150Mbps
Frequency
814MHz ~ 2.69GHz
Packaging
Box
Modulation
16-QAM, 64-QAM, GMSK, QPSK
Part Status
Active
Sensitivity
-146dBm
Antenna Type
Antenna Not Included
Mounting Type
Card Edge
Package / Case
Module
Power - Output
33dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
AIO, PCM, UART, USB
RF Family/Standard
Cellular, Navigation
Current - Receiving
2.8mA ~ 4.2mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | Arduino |
| Series | Arduino Cellular, Pro |
| Protocol | BeiDou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSDPA, HSPA+, HSUPA, LTE, QZSS, UMTS, WCDMA |
| Data Rate | 150Mbps |
| Frequency | 814MHz ~ 2.69GHz |
| Packaging | Box |
| Modulation | 16-QAM, 64-QAM, GMSK, QPSK |
| Part Status | Active |
| Sensitivity | -146dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Card Edge |
| Package / Case | Module |
| Power - Output | 33dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | AIO, PCM, UART, USB |
| RF Family/Standard | Cellular, Navigation |
| Current - Receiving | 2.8mA ~ 4.2mA |
| Operating Temperature | -40°C ~ 85°C |
