Step1: Product
Aratas America LLC B3F-1022

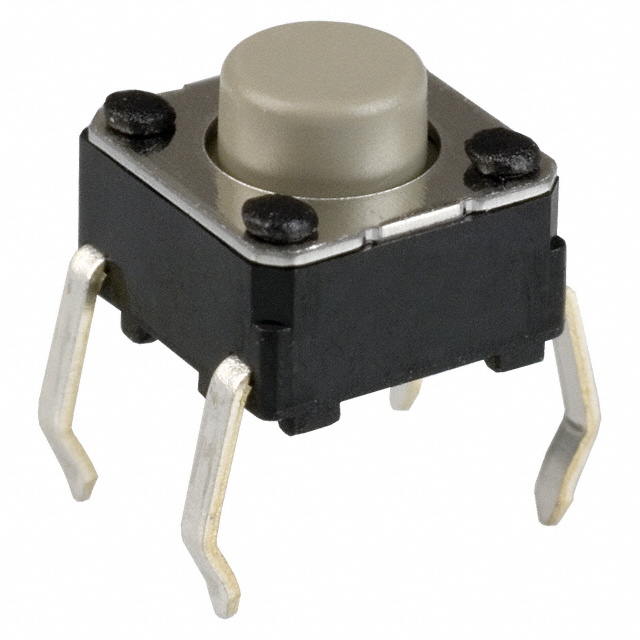

Image shown is a representation only
Manufacturer
Manufacturer No
B3F-1022
Quantity
1,320
Availability
In Stock
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
Mfr
Aratas America LLC
Series
B3F
Circuit
SPST-NO
Outline
6.00mm x 6.00mm
Packaging
Bulk
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
0.25mm
Mechanical Life
300,000 Cycles
Operating Force
150gf
Switch Function
Off-Mom
Termination Style
PC Pin
Base Product Number
B3F
Actuator Orientation
Top Actuated
Operating Temperature
-25°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 24VDC
Actuator Height off PCB, Vertical
5.00mm
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | B3F |
| Circuit | SPST-NO |
| Outline | 6.00mm x 6.00mm |
| Packaging | Bulk |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.25mm |
| Mechanical Life | 300,000 Cycles |
| Operating Force | 150gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Base Product Number | B3F |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Height off PCB, Vertical | 5.00mm |
