Step1: Product

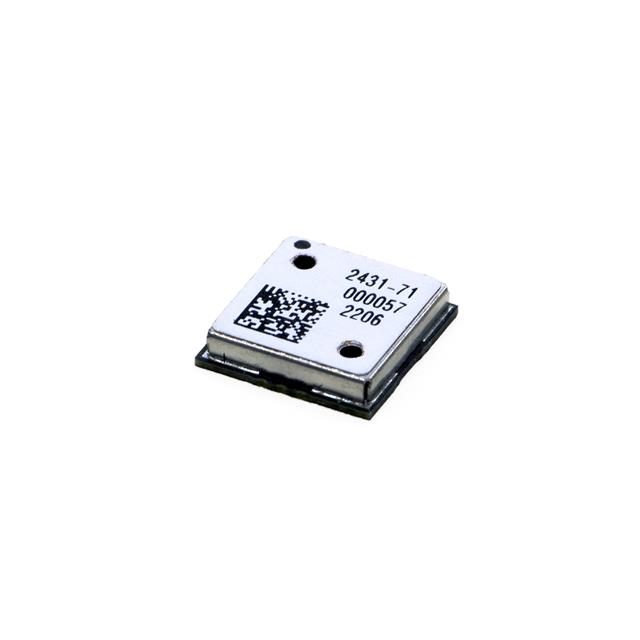

Antenova M20071
Image shown is a representation only
Manufacturer
Manufacturer No
M20071
Package
16-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
M20071 GPS RADIONOVA RF MODULE M
Detailed Description
GNSSNOVA RF Receiver BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS 698MHz ~ 798MHz, 824MHz ~ 849MHz, 869MHz ~ 894MHz, 880MHz ~ 915MHz, 1.71GHz ~ 1.79GHz, 1.85GHz ~ 1.91GHz, 1.92GHz ~ 1.98GHz, 2.4GHz ~ 2.49GHz, 2.5GHz ~ 2.69GHz -165dBm 115.2kbps PCB Trace
DataSheet
Series
GNSSNOVA
Features
UART interface
Frequency
698MHz ~ 798MHz, 824MHz ~ 849MHz, 869MHz ~ 894MHz, 880MHz ~ 915MHz, 1.71GHz ~ 1.79GHz, 1.85GHz ~ 1.91GHz, 1.92GHz ~ 1.98GHz, 2.4GHz ~ 2.49GHz, 2.5GHz ~ 2.69GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
-165dBm
Applications
GPS
Manufacturer
Antenova
Mounting Type
Surface Mount
Data Interface
UART
Package / Case
16-SMD Module
Data Rate (Max)
115.2kbps
Voltage - Supply
1.62V ~ 1.98V
Antenna Connector
PCB Trace
Operating Temperature
-40°C ~ 85°C
Modulation or Protocol
BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS
| Attribute | Value |
|---|---|
| Series | GNSSNOVA |
| Features | UART interface |
| Frequency | 698MHz ~ 798MHz, 824MHz ~ 849MHz, 869MHz ~ 894MHz, 880MHz ~ 915MHz, 1.71GHz ~ 1.79GHz, 1.85GHz ~ 1.91GHz, 1.92GHz ~ 1.98GHz, 2.4GHz ~ 2.49GHz, 2.5GHz ~ 2.69GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | -165dBm |
| Applications | GPS |
| Manufacturer | Antenova |
| Mounting Type | Surface Mount |
| Data Interface | UART |
| Package / Case | 16-SMD Module |
| Data Rate (Max) | 115.2kbps |
| Voltage - Supply | 1.62V ~ 1.98V |
| Antenna Connector | PCB Trace |
| Operating Temperature | -40°C ~ 85°C |
| Modulation or Protocol | BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS |
