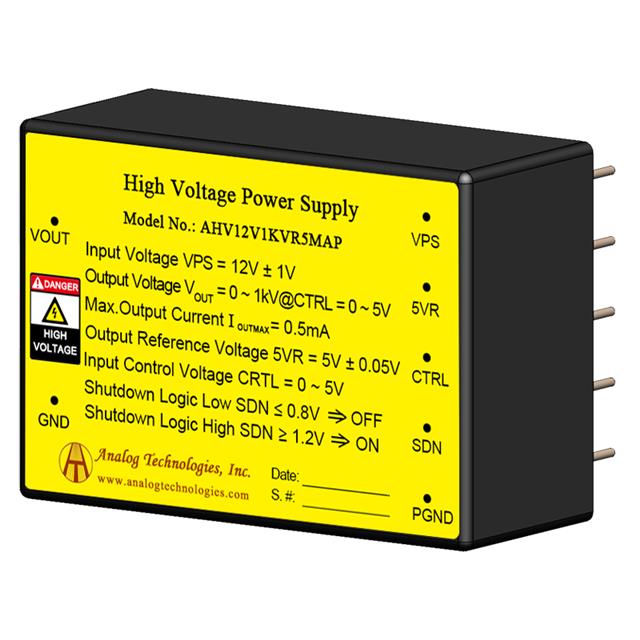

Analog Technologies AHV12V1KVR5MAP
Image shown is a representation only
Manufacturer
Manufacturer No
AHV12V1KVR5MAP
Package
7-DIP Module
Packaging
Bulk
Description
DIP High Voltage - Non-Isolated
Detailed Description
High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ 1000V 500µA 11V - 13V Input
DataSheet
Mfr
Analog Technologies
Type
High Voltage - Non-Isolated Module
Features
Adjustable Output
Packaging
Bulk
Efficiency
70%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Package / Case
7-DIP Module
Size / Dimension
1.97" L x 1.38" W x 0.79" H (50.0mm x 35.0mm x 20.1mm)
Number of Outputs
1
Voltage - Output 1
0 ~ 1000V
Operating Temperature
-20°C ~ 55°C
Voltage - Input (Max)
13V
Voltage - Input (Min)
11V
Current - Output (Max)
500µA
| Attribute | Value |
|---|---|
| Mfr | Analog Technologies |
| Type | High Voltage - Non-Isolated Module |
| Features | Adjustable Output |
| Packaging | Bulk |
| Efficiency | 70% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.97" L x 1.38" W x 0.79" H (50.0mm x 35.0mm x 20.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ 1000V |
| Operating Temperature | -20°C ~ 55°C |
| Voltage - Input (Max) | 13V |
| Voltage - Input (Min) | 11V |
| Current - Output (Max) | 500µA |
