Step1: Product

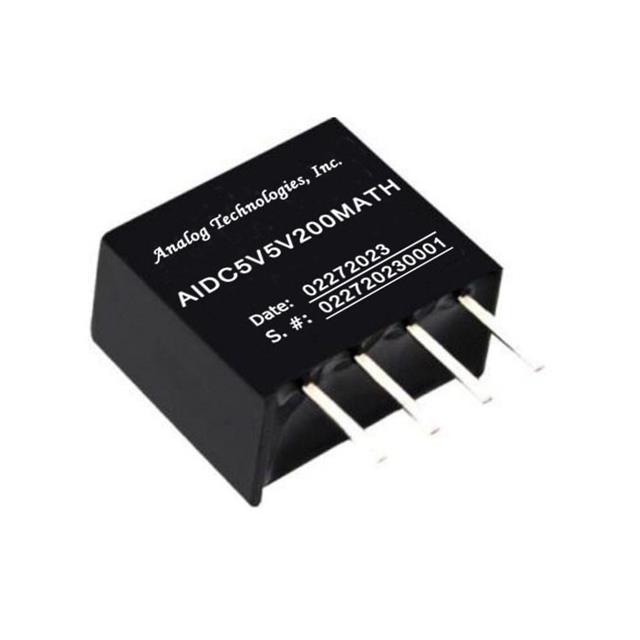

Analog Technologies, Inc. AIDC5V5V200MATH
Image shown is a representation only
Manufacturer
Manufacturer No
AIDC5V5V200MATH
Package
4-SIP Module
Packaging
Box
Description
ISOLATED 1W DC-DC CONVERTER
Detailed Description
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
DataSheet
Mfr
Analog Technologies, Inc.
Type
Isolated Module
Packaging
Box
Efficiency
80%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
1 W
Package / Case
4-SIP Module
Size / Dimension
0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
Number of Outputs
1
Voltage - Output 1
5V
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
200mA
| Attribute | Value |
|---|---|
| Mfr | Analog Technologies, Inc. |
| Type | Isolated Module |
| Packaging | Box |
| Efficiency | 80% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 1 W |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 200mA |
